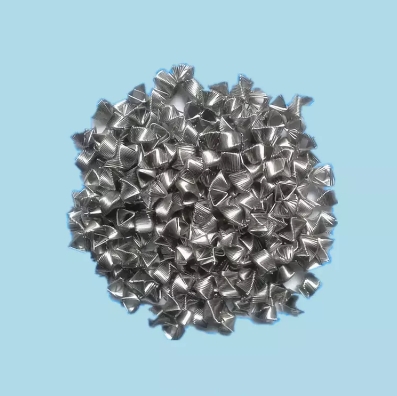

Triangular Spiral Packing: A Structured Packing Solution

Introduction
Triangular Spiral Packing (TSP) is a type of structured packing used in mass transfer operations such as distillation, absorption, and stripping. Its geometric design promotes efficient vapor-liquid contact, contributing to improved separation efficiency. Wangdu (Hebei) Chemical Engineering Co., LTD specializes in the manufacturing and application of this packing, focusing on precision engineering to meet industry requirements.

Design Characteristics
Triangular Spiral Packing features a structured arrangement of triangular channels that create a spiral pathway for vapor and liquid phases. This design ensures a large surface area for contact, typically ranging from 200 to 500 m²/m³, depending on the specific geometry and material thickness. The open structure of the packing results in a low pressure drop, generally between 20 and 100 Pa per theoretical stage, which enhances energy efficiency in separation processes.

The packing is commonly available in sizes ranging from 50 mm to 250 mm, with the smaller sizes offering higher efficiency but increased pressure drop. The void fraction of TSP is typically between 0.90 and 0.98, contributing to its high capacity and low resistance to flow.

Performance Data
In industrial applications, Triangular Spiral Packing demonstrates effective mass transfer performance. The height equivalent to a theoretical plate (HETP) typically ranges from 0.3 to 0.6 meters for most common applications. The packing's efficiency remains stable across a wide range of operating conditions, with turndown ratios of up to 4:1 achievable without significant performance degradation.

Capacity data shows that TSP can handle F-factors (vapor load factors) up to 3.0 Pa⁰·⁵ without flooding in many applications. The liquid distribution characteristics allow for uniform irrigation at rates as low as 0.2 m³/m²h, making it suitable for both high and low liquid load operations.

Materials and Applications
TSP is manufactured in various materials to suit different process conditions:

• Stainless steel 304/316 for general chemical applications

• 316L for enhanced corrosion resistance

• Carbon steel for non-corrosive hydrocarbon services

• Polypropylene and PVDF for highly corrosive environments

Common applications include:

• Crude oil fractionation

• Natural gas dehydration

• Solvent recovery systems

• Air separation columns

• Chemical processing and purification

Installation and Maintenance
Proper installation is crucial for optimal performance. The packing elements are typically installed in layers with careful attention to orientation and alignment. Maintenance requirements are minimal due to the robust construction and fouling-resistant design. Regular inspections should include checking for debris accumulation and structural integrity.

Conclusion
Triangular Spiral Packing offers an efficient solution for mass transfer operations where low pressure drop and high efficiency are required. Its structured design provides consistent performance across various operating conditions. Wangdu (Hebei) Chemical Engineering Co., LTD employs rigorous quality control measures in the production of TSP to ensure reliable operation in industrial processes.

References

1. Kister, H.Z. (1992). Distillation Design. McGraw-Hill.

2. Stichlmair, J.G., & Fair, J.R. (1998). Distillation: Principles and Practices. Wiley-VCH.

3. Wangdu (Hebei) Chemical Engineering Co., LTD. (2023). Technical Specifications for Structured Packing. Internal Design Manual.

4. Perry, R.H., & Green, D.W. (2007). Perry's Chemical Engineers' Handbook (8th ed.). McGraw-Hill.

5. Billet, R. (1995). Packed Columns in Processing and Environmental Technology. Wiley.
