Metal Saddle Rings: An Efficient Structured Packing for Modern Distillation and Absorption Processes

Introduction

In the field of chemical engineering, the efficiency of mass transfer operations such as distillation, absorption, and stripping is paramount to process economics and performance. The choice of tower internals, particularly the type of packing, plays a critical role in determining separation efficiency, throughput, and pressure drop. Among the various available options, Metal Saddle Rings have established themselves as a reliable and effective form of random packing for a wide range of industrial applications. As a manufacturer of process equipment and internals, Wangdu (Hebei) Chemical Engineering Co., LTD produces and supplies high-quality Metal Saddle Rings designed to meet the demanding requirements of the chemical, petrochemical, and environmental industries.

Design and Characteristics

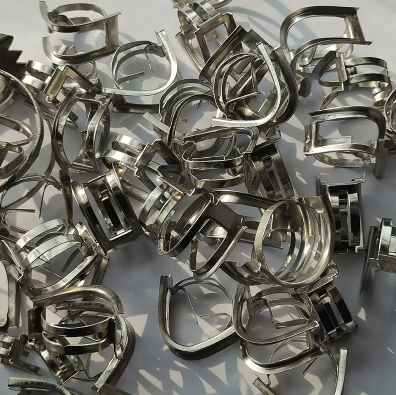

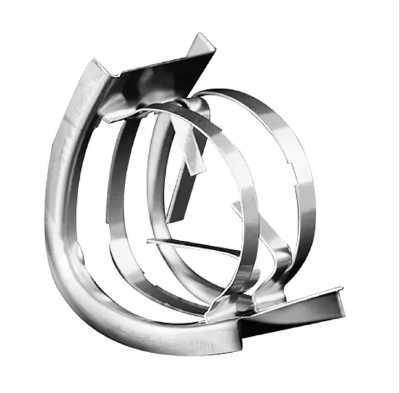

Metal Saddle Rings, including both the classic Berl Saddle shape and the more advanced Super Saddle designs, are characterized by their open, saddle-like structure. Typically fabricated from materials such as stainless steel 304/316L, carbon steel, or various alloys, these packings offer several intrinsic design advantages. Their curved surfaces and lack of internal corners promote a uniform liquid film distribution and enhance surface renewal. The open structure provides a high void fraction, often between 94% to 98%, which contributes to a low pressure drop per unit of height. The packings are non-interlocking, which helps prevent nesting and channeling, promoting more random settlement and better gas-liquid contact.

Performance Data and Advantages

The performance of packing is generally evaluated based on key parameters: efficiency (expressed as Height Equivalent to a Theoretical Plate, or HETP), capacity (often as the C-factor), and pressure drop (ΔP). Metal Saddle Rings offer a balanced profile across these metrics.

• Efficiency: Due to their shape promoting good liquid spreading, Metal Saddle Rings provide improved mass transfer efficiency compared to earlier random packings like Raschig Rings. For example, in a standard distillation service, 25mm Metal Super Saddles can achieve an HETP in the range of 400-600 mm, depending on the system and operating conditions.

• Capacity and Pressure Drop: The high free volume allows for high vapor and liquid capacities. The pressure drop is notably low, typically in the range of 0.2 to 1.0 mm H₂O per mm of packing height at the loading point for smaller sizes (e.g., 25mm), making them suitable for vacuum distillation operations.

• Structural Integrity: Manufactured from metal, these saddles possess high mechanical strength and thermal stability, allowing them to withstand typical process temperatures and pressures without deformation.

• Application Flexibility: Their robust construction makes them suitable for corrosive services when appropriate alloys are selected. They are commonly used in scrubbers for gas absorption, stripping columns, and liquid-liquid extraction towers.

Comparative Analysis with Other Packings

When compared to modern structured packings, Metal Saddle Rings generally have a lower initial cost and are easier to install (simply poured into the column). Structured packings may offer higher efficiency and lower pressure drop in some high-performance applications but at a greater capital investment. Compared to other random packings like Pall Rings, Saddles historically had slightly lower efficiency and capacity. However, modern Super Saddle designs have closed this gap significantly, offering performance comparable to first-generation Pall Rings while maintaining the liquid distribution benefits of the saddle geometry.

Selection and Operational Considerations

Selecting the appropriate size and material of Metal Saddle Rings is crucial. Smaller sizes (e.g., 15mm, 25mm) offer higher efficiency but at the cost of higher pressure drop and greater susceptibility to fouling. Larger sizes (e.g., 50mm, 75mm) are chosen for high-capacity services or where fouling is a concern. Proper liquid distribution at the top of the packed bed is essential to realize the full performance potential of any random packing, including saddles. Wangdu (Hebei) Chemical Engineering Co., LTD provides technical support to help clients select the optimal packing type, size, and material based on specific process simulation data and operational goals.

Conclusion

Metal Saddle Rings remain a practical and cost-effective solution for many separation processes. Their design offers a favorable balance of efficiency, capacity, and pressure drop, supported by decades of industrial application data. For engineers seeking reliable tower internals that deliver consistent performance without excessive complexity or cost, Metal Saddle Rings represent a sound technical choice. As a supplier, Wangdu (Hebei) Chemical Engineering Co., LTD is committed to manufacturing these components to precise specifications, contributing to the overall effectiveness and reliability of chemical processing units.

References

1. Kister, H. Z. (1992). Distillation Design. McGraw-Hill. (Provides fundamental theory and comparative data on various packings).

2. Stichlmair, J., & Fair, J. R. (1998). Distillation: Principles and Practices. Wiley-VCH. (Includes performance characteristics of random packings).

3. Perry, R. H., & Green, D. W. (Eds.). (2019). Perry's Chemical Engineers' Handbook (9th ed.). McGraw-Hill. (Standard reference for engineering data, including packing parameters).

4. Eckert, J. S. (1970). "Selecting the Proper Distillation Column Packing." Chemical Engineering Progress, 66(3), 39-44. (A classic paper discussing selection criteria for random packings).

5. Wangdu (Hebei) Chemical Engineering Co., LTD. (2024). Technical Data Sheet: Metal Saddle Rings. (Internal product specifications and performance test data).
