Random Packing for Mass Transfer Processes: Materials, Types, and Selection Criteria

Random packings are a class of mass transfer media used in chemical processing towers for operations such as distillation, absorption, stripping, and liquid-liquid extraction. Their primary function is to provide a large surface area for intimate contact between liquid and vapor phases, thereby maximizing separation efficiency. This article provides a technical overview of random packings, including their types, materials, and key performance characteristics, with reference to the manufacturing capabilities of Wangdu (Hebei) Chemical Engineering Co., LTD.

1. Types and Evolution of Random Packing

Random packings are dumped into a column in bulk, creating a bed through which fluids pass. They have evolved significantly from first-generation to third-generation designs:

• First Generation: This category includes simple geometric shapes like Raschig rings (hollow cylinders) and Berl saddles. While a foundational technology, these packings offer relatively lower surface area and higher pressure drop compared to modern designs.

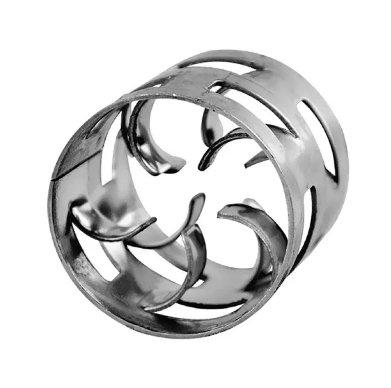

• Second Generation: Introduced in the 1960s, packings like the Pall ring improved upon earlier designs by incorporating windows, tabs, or other features to enhance fluid distribution and reduce pressure drop. This generation marked a significant step forward in efficiency.

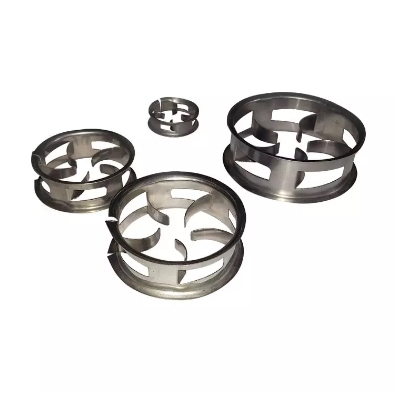

• Third Generation: Modern high-performance packings, such as those with a grid-like or open-structured geometry (e.g., IMTP®, CMR®), are engineered to maximize the surface area-to-volume ratio while minimizing pressure drop. They are designed to promote even liquid distribution and reduce channeling within the bed.




2. Materials of Construction

The selection of material is critical for corrosion resistance, mechanical strength, and suitability for the process environment. Common materials include:

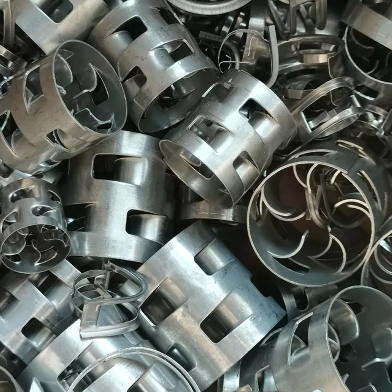

• Metals: Carbon steel, stainless steels (304, 304L, 316, 316L), duplex stainless steel, monel, and titanium. Metal packings offer high strength and are suitable for high-temperature applications.

• Plastics: Polypropylene (PP), polyvinylidene fluoride (PVDF), and polytetrafluoroethylene (PTFE). Plastic packings are lightweight and cost-effective for corrosive services at lower temperatures, typically below 150°C.

• Ceramics: Used in applications involving high temperatures and highly corrosive conditions, but their fragility is a consideration.




3. Key Performance Parameters

The efficiency of a random packing is evaluated based on several interconnected parameters:

• Surface Area (m²/m³): This is the total interfacial area provided by the packing per unit volume of the bed. Higher surface area generally promotes greater mass transfer. Values can range from about 60 m²/m³ for large first-generation packings to over 500 m²/m³ for small, modern high-performance packings.

• Pressure Drop (ΔP): This is the resistance to vapor flow through the packing bed. Lower pressure drop is desirable as it reduces energy consumption. Modern packings are designed to achieve lower pressure drop for a given efficiency, which is particularly important in vacuum distillation.

• HETP (Height Equivalent to a Theoretical Plate): HETP is a measure of separation efficiency, representing the height of packing required to achieve one theoretical plate of separation. A lower HETP indicates higher efficiency, meaning a shorter column can be used for the same separation duty. HETP values are determined through testing and depend on the specific system and operating conditions.

Wangdu (Hebei) Chemical Engineering Co., LTD supplies a comprehensive range of random packings, from traditional designs to high-performance types, in various materials. The company focuses on providing packings that meet specified performance criteria, such as surface area and pressure drop, for applications in the chemical, petrochemical, and environmental industries. Engineering support is available to assist in selecting the appropriate packing type and material based on process requirements.

In conclusion, random packings are a versatile and widely used solution for enhancing mass transfer in process columns. The selection of the correct type, size, and material is a key engineering decision that directly impacts column efficiency, capacity, and operational cost.
