Introduction
Random packing elements are a fundamental component in chemical processing towers designed to facilitate mass transfer between gas and liquid phases. These units are widely employed in operations such as distillation, absorption, and stripping. Their primary function is to provide a large surface area for contact between the phases while maintaining a low resistance to fluid flow. This article provides a technical examination of random packings, covering their evolution, types, hydraulic performance, industrial applications, and selection criteria.
The Function and Evolution of Random Packing
The core objective of a random packing is to enhance the efficiency of separation processes. In a packed column, the packing material is dumped randomly into the shell, creating a vast network of pathways for gas and liquid to interact. The history of random packings shows a clear trajectory from simple, first-generation materials to sophisticated, high-performance designs.
Early packings, such as Raschig rings (invented by Fritz Raschig in the early 1900s), were simple cylinders made from ceramic or metal. While an improvement over earlier methods like bubble caps, they offered limited surface area and relatively high pressure drop. The development of second-generation packings like Berl saddles and Intalox saddles introduced a curved shape that improved liquid distribution and surface area per unit volume. Modern, high-efficiency packings, including structured-like random packings, are engineered with complex geometries (e.g., Nutter Rings, IMTP®) to maximize performance by optimizing surface area, promoting liquid redistribution, and minimizing pressure drop.
Types and Characteristics of Common Random Packings
Random packings can be categorized by both geometry and material of construction, each combination offering distinct advantages.
Geometry and Generations:
First Generation (Raschig Rings): Hollow cylinders with a length equal to their diameter. They provide a surface area-to-volume ratio in the range of 55-150 m²/m³, depending on size. Their performance is characterized by a relatively high pressure drop per theoretical stage.
Second Generation (Saddles): Berl and Intalox saddles have a saddle-like shape that eliminates the central fluid stagnation zone found in Raschig rings. This design improves liquid spreading and provides a higher surface area (approximately 80-260 m²/m³) and lower pressure drop for a given separation duty.

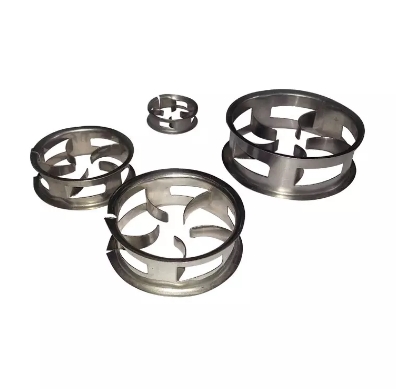

Third Generation (High-Efficiency): These packings, such as metal or plastic rings with internal struts, lobes, and perforations, are designed to combine high capacity with high efficiency. They create a more open structure, leading to a high void fraction (>95%) and a surface area of 100-350 m²/m³. This results in a lower pressure drop per theoretical stage compared to earlier designs.
Materials of Construction:
Ceramic: Used for high-temperature applications and excellent corrosion resistance, particularly with acids. Common in scrubbers and corrosive distillation.
Metal (Stainless Steel, Carbon Steel, etc.): Offer high strength and good wettability. Suitable for a wide range of temperatures and pressures in distillation and absorption columns.
Plastics (PP, PVDF, etc.): Lightweight and cost-effective for corrosive services (e.g., chlorine scrubbers) at lower temperatures. Surface tension and wettability can be design considerations.
Hydraulic Performance: Capacity, Pressure Drop, and Efficiency
The performance of a random packing is quantified by several interrelated hydraulic parameters.
Capacity: The maximum vapor or gas velocity a packing can handle before flooding occurs. Flooding is a condition where liquid can no longer flow down the column, leading to a sharp increase in pressure drop and a collapse of separation efficiency. High-efficiency packings are designed to have a high capacity, often represented by a high C-factor (C = V_s * √(ρ_g / (ρ_l - ρ_g))), where V_s is the superficial vapor velocity.
Pressure Drop: This is a critical economic factor, as it directly impacts energy consumption for gas compression or vacuum systems. Data from Norton Chemical Process Products Corporation indicates that under similar loading conditions, a modern high-efficiency random packing can achieve a pressure drop 30-50% lower than first-generation packings for the same separation duty.
Efficiency (HETP): Efficiency is typically measured as the Height Equivalent to a Theoretical Plate (HETP). A lower HETP value indicates a more efficient packing, meaning a shorter bed height is required to achieve the same number of theoretical separation stages. HETP values for random packings can range from 0.3 to 1.0 meters, depending on the packing size, system properties, and operating rates.
Industrial Applications and Selection Criteria
Random packings are selected for a diverse range of unit operations.
Common Applications:
Distillation: Separating hydrocarbon mixtures, solvent recovery, and specialty chemical purification.
Gas Absorption: Removing contaminants like SO2, H2S, or CO2 from gas streams using a liquid solvent in scrubbers.
Liquid-Liquid Extraction: Providing surface area for mass transfer between two immiscible liquid phases.
Stripping: Removing volatile components from a liquid by contacting it with a gas stream.
Selection Considerations:
System Chemistry: Corrosivity dictates material choice (e.g., ceramic for acids, plastic for chlorinated compounds).
Operating Pressure and Temperature: Metal packings are suitable for high temperatures, while plastics have temperature limits.
Fouling Tendency: Open geometry packings are preferred for fluids that may precipitate solids or polymerize.
Cost vs. Performance: A techno-economic analysis is required to balance the higher initial cost of advanced packings against the long-term savings from reduced energy consumption and a smaller column footprint.
Installation and Operational Considerations
Proper installation is crucial for achieving design performance. The packing must be poured randomly to ensure a uniform bed without creating preferred flow channels. The use of a proper support plate and a liquid distributor designed for the specific packing is essential. Poor liquid distribution is a primary cause of performance failure in packed columns, as it leads to maldistribution and a significant reduction in effective mass transfer area. Operational guidelines from manufacturers must be followed to stay within the loading region and avoid flooding or excessive entrainment.
Conclusion
Random packings are a versatile and critical component in chemical process engineering. The evolution from simple rings to advanced, high-efficiency geometries has provided engineers with tools to design more compact, energy-efficient, and cost-effective separation processes. The selection of an appropriate random packing involves a detailed analysis of hydraulic performance, material compatibility, and economic factors to ensure reliable and efficient column operation.
Reference
Kister, H. Z. (1992). Distillation Design. McGraw-Hill.
Stichlmair, J., & Fair, J. R. (1998). Distillation: Principles and Practices. Wiley-VCH.
Norton Chemical Process Products Corporation. (2021). Random Packing Performance Data. Bulletin RK-13.
Eckert, J. S. (1970). Selecting the Proper Distillation Column Packing. Chemical Engineering Progress, 66(3), 39-44.
Perry, R. H., & Green, D. W. (Eds.). (2019). Perry's Chemical Engineers' Handbook (9th ed.). McGraw-Hill Education.
