Introduction
Distillation remains one of the most widely implemented separation processes in the chemical, petrochemical, and pharmaceutical industries. The efficiency of a distillation column is largely determined by its internal components, which facilitate contact between vapor and liquid phases. Random packings, consisting of discrete units dumped into the column shell, represent a prevalent choice for these internals. This article provides a detailed technical examination of randomly packed distillation columns, covering packing characteristics, hydraulic performance, design principles, and industrial application considerations.
The Role of Random Packing in Distillation
In a distillation column, the primary function of random packing is to create a large, accessible interfacial surface area for mass transfer between the ascending vapor and descending liquid. This contact enables the separation of mixture components based on their relative volatilities. Compared to traditional tray columns, randomly packed columns typically offer advantages in specific scenarios, including lower pressure drop per theoretical stage, higher efficiency for difficult separations, and often a lower total height for the same separation duty.
Types and Evolution of Random Packings
The development of random packings has progressed through several generations, each offering improved performance characteristics.
First Generation: Raschig Rings
These are hollow cylinders, typically with a length equal to their diameter, made from ceramic, metal, or plastic. While they represented a significant early advancement, their performance is limited by a relatively low surface area per unit volume (e.g., 55-150 m²/m³ for 25mm rings) and a tendency to promote poor liquid distribution, leading to channeling.
Second Generation: Saddle-Type Packings
Introduced to address the shortcomings of rings, Berl saddles and later Intalox saddles (manufactured by Norton) feature a curved, saddle-like shape. This geometry minimizes the central stagnant zone and improves liquid distribution. They provide a higher surface area (e.g., 80-260 m²/m³) and a lower pressure drop for equivalent capacity compared to Raschig rings.
Third Generation: High-Performance Packings

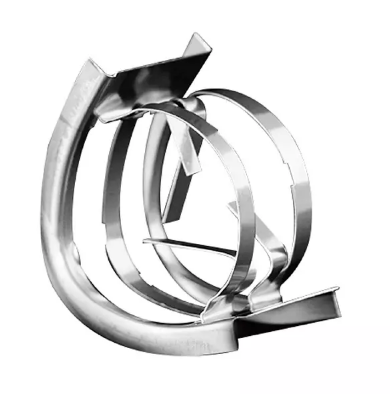

Modern random packings, such as the Nutter Ring or IMTP® (Integrated Mass Transfer Packing), are engineered with complex geometries involving internal struts, perforations, and contoured walls. These designs aim to maximize the useful surface area while creating a very open structure. This results in a high void fraction (often >95%), which confers a high capacity and a very low pressure drop per theoretical stage. Data from Strigle (1994) indicates that these packings can provide 40-70% more theoretical stages than first-generation packings under similar pressure-drop constraints.
Key Performance Parameters in Distillation
The selection and design of a randomly packed distillation column revolve around several critical parameters.
Height Equivalent to a Theoretical Plate (HETP):
HETP is a measure of packing efficiency, defined as the height of packing required to achieve a separation equivalent to one theoretical equilibrium stage. A lower HETP indicates a more efficient packing. For modern random packings, HETP values typically range from 0.4 to 0.9 meters, depending on the packing size (smaller sizes offer lower HETP but higher pressure drop) and the physical properties of the system. It is important to note that HETP is not a constant; it is influenced by vapor and liquid flow rates, and typically shows a minimum in the loading region.
Pressure Drop:
The pressure drop across a packed bed is a crucial economic and operational factor. It directly impacts the required pressure, and therefore temperature, at the column reboiler, which affects energy consumption and can influence product degradation for heat-sensitive materials. Modern high-performance packings are specifically designed to minimize pressure drop, often achieving values of 0.1 to 0.5 mbar per theoretical stage.
Capacity and Flooding:
The capacity of a packing is defined by its maximum operable vapor velocity before flooding occurs. Flooding is characterized by a sharp, nonlinear increase in pressure drop where liquid is entrained upward by the vapor, leading to a collapse of separation efficiency. The capacity is commonly expressed using the capacity factor, Cs = Us √(ρg / (ρl - ρg)), where Us is the superficial vapor velocity. The ultimate capacity is a function of packing geometry and void fraction.
Design and Operational Considerations
Successful implementation of a randomly packed column requires careful attention to ancillary equipment and operational protocols.
Liquid Distribution:
The performance of any packed column is critically dependent on initial liquid distribution. Poor distribution leads to maldistribution, where liquid and vapor flow preferentially through certain sections of the bed, drastically reducing the effective mass transfer area. A high-quality liquid distributor must be used, typically designed to provide a sufficient number of drip points (e.g., 100-200 points per m² for large diameters) to ensure uniform irrigation at the top of the bed.
Packing Support and Bed Limits:
A robust support plate is required to hold the packing weight while offering a high percentage of open area to minimize pressure drop. For deep beds, intermediate liquid redistributors are necessary to collect and re-distribute liquid, counteracting the natural tendency of liquid to migrate toward the column walls. Bed depths between redistributors are typically limited to 5-10 column diameters for smaller packings and 5-8 diameters for larger ones, based on industry practice.
Material Selection:
The choice of packing material is dictated by the chemical nature of the process fluids.
Metals (Stainless Steel, etc.): Used for most hydrocarbon and chemical distillations where strength and good wettability are required.
Ceramics: Applied in highly corrosive environments, such as with acids, and for high-temperature services.
Plastics (PP, PVDF, etc.): Suitable for corrosive services like chlorination at lower temperatures; wettability can be a concern with aqueous systems.
Industrial Applications
Randomly packed columns are employed across a broad spectrum of industries:
Petrochemicals: Benzene-toluene-xylene (BTX) separation, solvent recovery.
Fine Chemicals and Pharmaceuticals: Purification of heat-sensitive intermediates where low pressure drop and holdup are advantageous.
Environmental Engineering: Recovery of volatile organic compounds (VOCs) from air or wastewater streams in stripping operations.
Conclusion
Random packings are a well-established and versatile internal for distillation columns. The evolution of packing geometry has consistently delivered improvements in efficiency, capacity, and energy consumption. The successful design and operation of a randomly packed column require an integrated approach, selecting not only the appropriate packing but also ensuring proper liquid distribution, bed support, and redistribution. When correctly applied, they provide a highly effective solution for a wide range of separation challenges.
Reference
Kister, H. Z. (1992). Distillation Design. McGraw-Hill.
Strigle, R. F. (1994). Random Packings and Packed Towers: Design and Applications. Gulf Publishing Company.
Billet, R. (1995). Packed Towers in Processing and Environmental Technology. VCH Publishers.
Perry, R. H., & Green, D. W. (Eds.). (2019). Perry's Chemical Engineers' Handbook (9th ed.). McGraw-Hill Education.
Eckert, J. S. (1970). Selecting the Proper Distillation Column Packing. Chemical Engineering Progress, 66(3), 39-44.
