Distillation Process Design Package: A Methodical Approach by Wangdu (Hebei) Chemical Engineering Co., LTD

Introduction

In the chemical process industries, the separation of liquid mixtures into their individual components is a fundamental and often energy-intensive operation. Distillation remains the most widely employed separation technique for such tasks. The effectiveness, safety, and economic viability of a distillation system are fundamentally determined during the design phase. At Wangdu (Hebei) Chemical Engineering Co., LTD, the development of a comprehensive Distillation Process Design Package (DPDP) is a critical deliverable that bridges conceptual process selection and detailed engineering. This document serves as a foundational blueprint, providing all necessary process information for the successful engineering, procurement, construction, and operation of a distillation unit. This article outlines the key components and methodological approach integrated into our DPDP.

Core Components of the Design Package

A Wangdu DPDP is a structured collection of documents and datasheets that precisely defines the process. Its primary elements include:

1. Process Flow Diagrams (PFDs): The PFD provides a macroscopic view of the process. It illustrates all major equipment, the primary process streams, and their flow directions. Key operational data, such as flow rates, compositions, temperatures, and pressures, are annotated directly on the diagram for principal streams. For a distillation column, this includes the feed, distillate, and bottoms streams, as well as the utility streams to the reboiler and condenser.

2. Piping and Instrumentation Diagrams (P&IDs): Building upon the PFD, the P&ID offers a more detailed schematic. It specifies the piping, instrumentation, and control systems. This includes the sizing and specification of all valves, sensors (for temperature, pressure, and level), control loops, and safety devices relevant to the column, its reboiler, condenser, and associated pumps and tanks.

3. Heat and Material Balance (HMB): The HMB is the quantitative foundation of the entire design. It is a closed accounting of all mass and energy entering and leaving the system. For a typical distillation column, the HMB would verify that the total mass of the feed equals the combined mass of the distillate and bottoms products. Similarly, it ensures the energy input from the reboiler and feed stream is balanced by the energy removed by the condenser and the product streams. A sample extract from an HMB for a benzene-toluene separation might show a feed rate of 10,000 kg/h, yielding a distillate of 5,500 kg/h (99% benzene) and a bottoms of 4,500 kg/h (98% toluene), with associated energy duties.

4. Equipment Datasheets: Each major piece of equipment is defined by a detailed datasheet. For the distillation column itself, this includes:

   Similar datasheets are created for the reboiler (thermosiphon or kettle type, heat transfer area, duty), condenser (heat transfer area, duty), and pumps (flow rate, head, materials of construction).

• Design Basis: Internal design pressure (e.g., 5 barg) and temperature (e.g., 200°C).

• Dimensions: Tower height and diameter.

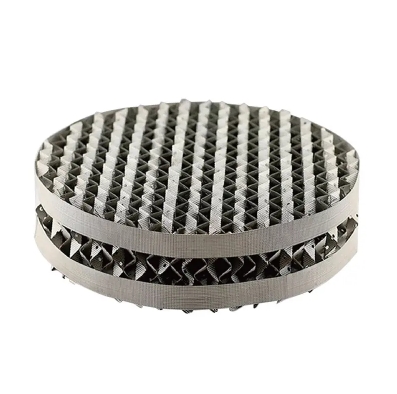

• Internals: Detailed specifications for trays or packing, including type, material, number of passes, weir height, and hole size/arrangement for trays, or type and size for packing.

• Performance Data: Expected pressure drop per tray or per meter of packing, and turndown ratio.

Design Methodology and Data Integration

The development of a robust DPDP at Wangdu is guided by a systematic methodology that relies on both theoretical modeling and empirical data.

1. Vapor-Liquid Equilibrium (VLE) Data: The cornerstone of any distillation design is accurate VLE data. This describes the relationship between the compositions of the liquid and vapor phases at equilibrium for a given temperature and pressure. We utilize established databases, such as the DECHEMA Data Series, and employ thermodynamic models (e.g., NRTL, UNIQUAC) within process simulation software to predict component behavior. The selection of the appropriate model is validated against available experimental data to ensure reliability.

2. Process Simulation: Steady-state simulation software, such as Aspen Plus or ChemCAD, is an indispensable tool. We build a rigorous model of the distillation column, incorporating the VLE models, HMB, and kinetic data if reactions are involved. The model is used to determine key operational parameters, including the reflux ratio, number of theoretical stages, and feed stage location. For instance, a simulation might indicate that a specific separation requires 25 theoretical stages with an optimum reflux ratio of 2.5, and the feed should be introduced on stage 14.

3. Hydraulic Analysis: Once the number of theoretical stages is determined, a hydraulic analysis is performed to translate this into actual column dimensions. This involves selecting the type of contacting device (sieve tray, valve tray, or structured/random packing) and calculating the column diameter based on flooding velocity considerations. We use standard correlations, such as those from the American Institute of Chemical Engineers (AIChE), to ensure the column operates efficiently within 70-85% of its flood point.

Safety and Control Considerations

A well-designed control system is integral to stable and safe operation. Our DPDP includes a detailed control strategy, typically featuring:

• Pressure Control: Managing the pressure in the condenser.

• Level Control: Maintaining levels in the reflux drum and column base.

• Temperature/Composition Control: Using the temperature on a sensitive tray (or an online analyzer) to manipulate the reflux ratio or the reboiler steam flow, thereby maintaining product specifications.

Furthermore, the P&ID incorporates necessary safety features like pressure safety valves (PSVs) on the column and vessels, and high-level alarms to prevent liquid carry-over.

Economic and Environmental Considerations

The DPDP also provides the basis for economic assessment. The energy consumption, primarily determined by the reboiler duty, is a major operating cost. Our designs often evaluate the potential for heat integration, such as using the hot bottoms product to preheat the feed, which can reduce utility costs by a quantifiable margin. Equipment sizing from the datasheets allows for accurate capital cost estimation.

Conclusion

The Distillation Process Design Package is a comprehensive and data-driven document that encapsulates the complete process design intent. At Wangdu (Hebei) Chemical Engineering Co., LTD, our methodical approach to developing the DPDP—grounded in accurate thermodynamic data, rigorous simulation, and standard engineering practices—ensures that the provided package forms a solid and practical foundation for the subsequent stages of project execution. It serves as a critical communication tool, aligning process engineers with detailed design, procurement, and operations teams.

Reference

1. Kister, H. Z. (1992). Distillation Design. McGraw-Hill.

2. Seader, J. D., Henley, E. J., & Roper, D. K. (2010). Separation Process Principles (3rd ed.). John Wiley & Sons.

3. Green, D. W., & Perry, R. H. (Eds.). (2007). Perry's Chemical Engineers' Handbook (8th ed.). McGraw-Hill.

4. American Institute of Chemical Engineers (AIChE). (1958). Bubble Tray Design Manual.

5. DECHEMA. (1977-present). DECHEMA Chemistry Data Series. Frankfurt am Main: DECHEMA.
