Gauze Packing in China: Technical Overview and Industrial Context from Wangdu (Hebei) Chemical Engineering Co., LTD

Introduction
Gauze packing represents a specialized category of structured packing designed for high-efficiency mass transfer operations. Characterized by its construction from woven metal wires, this packing type provides a high surface area-to-volume ratio and promotes thin, uniform liquid films through capillary action. Within the global industrial landscape, China has developed significant manufacturing capabilities for these precision components. Wangdu (Hebei) Chemical Engineering Co., LTD contributes to this sector through the production and supply of wire gauze packing for demanding separation processes. This article provides a technical examination of gauze packing, its performance characteristics, manufacturing considerations, and applications within the Chinese industrial context.

Material Composition and Structural Design
The functional properties of gauze packing are determined by its material construction and geometric configuration.

• Wire Mesh Construction: Typically manufactured from wires ranging from 0.1 mm to 0.2 mm in diameter, woven into a plain or twill weave pattern. This creates a porous structure with high void volume (often exceeding 90%) and specific surface areas generally ranging from 500 to 1000 m²/m³.

• Standard Materials: Austenitic stainless steels (AISI 304/304L, 316/316L) are predominantly used. The chromium content (16-18% minimum) provides corrosion resistance through a passive oxide layer, while 316/316L includes 2-3% molybdenum for enhanced chloride resistance.

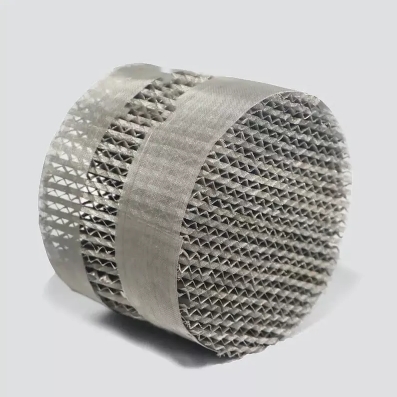

• Module Assembly: The wire mesh is corrugated and assembled into cylindrical or rectangular modules, with adjacent layers oriented at specific angles (typically 90°) to create a cross-flow pattern and promote fluid redistribution.

Performance Characteristics and Engineering Data
Gauze packing exhibits distinct performance attributes quantified through standardized testing methodologies.

• Mass Transfer Efficiency: Gauze packing demonstrates high separation efficiency, typically expressed as Height Equivalent to a Theoretical Plate (HETP). Under controlled conditions in standardized test systems (e.g., chlorobenzene/ethylbenzene at 100 torr), HETP values between 100-250 mm are commonly reported for commercial gauze packings.

• Pressure Drop Characteristics: The open structure results in relatively low pressure drop per theoretical stage. Performance data indicate pressure drop ranges of approximately 0.05-0.3 mbar per theoretical stage under typical distillation conditions (F-factor 1-2 Pa^0.5).

• Liquid Distribution Properties: The capillary effect of the woven structure promotes rapid and uniform liquid spreading across the packing surface, contributing to its high mass transfer efficiency, particularly at low liquid loads.

Manufacturing Process and Quality Control
The production of gauze packing requires precise manufacturing controls to ensure consistent performance.

• Wire Drawing and Weaving: The process begins with precision drawing of metal wires to specified diameters, followed by automated weaving on specialized looms to create mesh with consistent mesh count and weave pattern.

• Corrugation and Forming: The mesh is corrugated using precision rollers to create the specific channel geometry, maintaining careful control over corrugation depth and pitch.

• Assembly and Heat Treatment: Corrugated sheets are assembled into modules and typically undergo annealing heat treatments (e.g., 1050°C for stainless steels) in controlled atmosphere furnaces to relieve stresses and ensure dimensional stability.

• Quality Assurance: Manufacturing at Wangdu (Hebei) Chemical Engineering Co., LTD implements quality checks including mesh density verification, dimensional tolerance inspection, and material certification according to ASTM A480/A480M specifications.

Industrial Applications and Implementation Considerations
Gauze packing is specified for applications requiring high separation efficiency.

• High-Purity Distillation: Particularly valuable in fine chemical and pharmaceutical industries where difficult separations with close-boiling components are required.

• Vacuum Distillation Systems: The combination of high efficiency and low pressure drop makes gauze packing particularly suitable for vacuum operations where pressure loss is a critical design parameter.

• Heat-Sensitive Compounds: The low liquid holdup and rapid mass transfer characteristics benefit the processing of thermally labile compounds.

Technical Considerations and Limitations
While offering performance advantages in specific applications, gauze packing presents several operational considerations.

• Fouling Sensitivity: The fine mesh structure is susceptible to plugging or fouling with suspended solids or polymerizing materials, requiring thorough feed filtration.

• Liquid Distribution Requirements: The high efficiency of gauze packing is dependent on precision liquid distribution, typically requiring specialized distributors with high drip point density (often 100-200 points/m²).

• Cost Structure: The manufacturing complexity and material requirements generally result in a higher cost compared to sheet metal structured packings.

• Cleaning and Maintenance: Procedures for cleaning and maintenance require careful execution to avoid damaging the fine wire structure.

The Chinese Gauze Packing Industry
China's manufacturing sector has developed capabilities for producing gauze packing that meets international technical standards.

• Supply Chain Development: Established supply chains for precision wire drawing and weaving support the manufacturing ecosystem.

• Technical Standards Implementation: Chinese manufacturers typically reference international standards such as VDI 2761 for dimensional tolerances and performance verification.

• Market Position: Chinese-produced gauze packing serves both domestic demand and international markets, particularly in cost-sensitive applications where performance requirements must be balanced with economic considerations.

Wangdu (Hebei) Chemical Engineering Co., LTD operates within this industrial framework, focusing on the production of gauze packing for applications where its specific performance characteristics provide technical benefits.

Conclusion
Gauze packing represents a technically advanced solution for high-efficiency mass transfer operations, particularly in vacuum distillation and high-purity separation processes. Its performance characteristics stem from the capillary action and high surface area of its woven wire construction. The Chinese manufacturing sector, including companies like Wangdu (Hebei) Chemical Engineering Co., LTD, has established production capabilities for these specialized components. The selection of gauze packing for a specific application requires careful consideration of its performance advantages alongside its operational constraints, particularly regarding fouling potential and distribution requirements.

Reference

1. Verein Deutscher Ingenieure. (2016). *VDI 2761: Packings of columns with arranged packing elements - Metallic and ceramic packings*.

2. Billet, R. (1995). Packed Towers in Processing and Environmental Technology. VCH Publishers.

3. Kister, H. Z. (1992). Distillation Design. McGraw-Hill.

4. ASTM International. (2020). *A480/A480M - Standard Specification for General Requirements for Flat-Rolled Stainless and Heat-Resisting Steel Plate, Sheet, and Strip*.

5. Stichlmair, J. G., & Fair, J. R. (1998). Distillation: Principles and Practices. Wiley-VCH.

6. Performance data derived from published technical literature on wire gauze packing characteristics.
