Metal Structured Packing: Design, Performance, and Applications in Modern Separation Processes

Introduction

Metal structured packing is a critical internals component within separation towers, widely employed in distillation, absorption, and stripping processes across the chemical, petrochemical, natural gas, and refining industries. Characterized by its ordered, geometric structure, it offers a significant advancement over traditional random packing and trays by providing a high surface area for mass transfer with relatively low pressure drop. This article outlines the design principles, key performance characteristics, application data, and selection considerations for metal structured packing, with a focus on practical engineering aspects.

Design and Construction Features

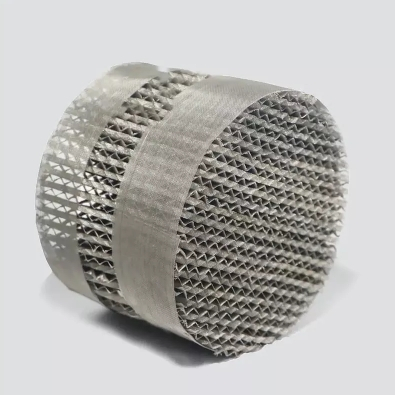

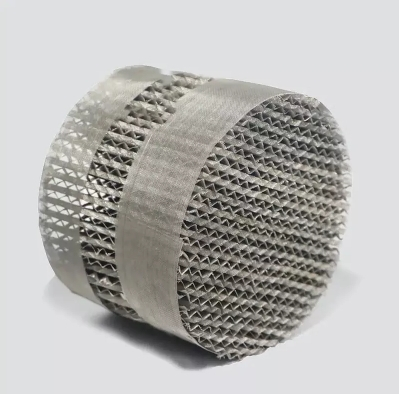

Structured packing is manufactured from thin, corrugated metal sheets, typically fabricated from stainless steels (e.g., 304, 316L), titanium, or specialty alloys to ensure corrosion resistance and mechanical integrity. These sheets are arranged in layers, with the corrugations of adjacent layers oriented at a specific angle (usually 45° or 60°) to create a network of open, intersecting flow channels.

The primary geometric parameters defining a packing’s characteristics include:

• Specific Surface Area (a): Ranges from 100 to 750 m²/m³. Lower surface area packings (e.g., 125-250 m²/m³) are used for high-capacity service, while high-area packings (e.g., 500-750 m²/m³) are selected for high-efficiency, low-pressure drop duties.

• Crimping Angle: Influences the trade-off between efficiency and capacity.

• Channel Size: Directly related to the specific surface area.

• Metal Sheet Thickness: Typically between 0.1 mm and 0.2 mm, balancing strength and weight.

This structured geometry promotes thin-film flow of liquid over the metal surface, while vapor flows continuously upward through the open channels, enabling efficient, counter-current contact.

Key Performance Characteristics
The performance of structured packing is quantitatively evaluated through several interconnected parameters:

1. Mass Transfer Efficiency: Expressed as Height Equivalent to a Theoretical Plate (HETP). For common hydrocarbon and chemical distillation services, well-distributed structured packing typically achieves HETP values between 300 mm and 600 mm under standard test conditions (e.g., at 70-80% of flood capacity). For instance, data for a 250 m²/m³ packing in a C6/C7 distillation system at moderate pressure might show an HETP of approximately 450 mm.

2. Pressure Drop: A major advantage of structured packing is its low pressure drop per theoretical stage (ΔP/HETP). Typical dry pressure drop ranges from 0.2 to 1.0 mbar per meter of packing height, depending on the specific surface area and gas load. Flooding, the operational limit, usually occurs at a pressure drop of about 10-12 mbar/m for many designs.

3. Capacity (or Throughput): The maximum vapor capacity (C-factor, C_s) at which packing can operate before flooding is generally higher than that of trays and random packing for equivalent column diameter. Capacity curves, derived from pilot-scale testing and modeling, are essential for design. Published data for a standard 316L stainless steel packing with a=250 m²/m³ often indicates a maximum usable C_s factor of approximately 0.09-0.11 m/s at a typical liquid load of 20 m³/(m²h).

4. Liquid Distribution: Performance is highly sensitive to initial liquid distribution. Best practice dictates one distributor drip point per 100-150 cm² of column cross-sectional area for high-efficiency packing.




Applications and Operational Data
Metal structured packing is selected for specific process conditions where its attributes provide tangible benefits:

• Deep Vacuum Distillation: Low pressure drop minimizes bottom temperature, reducing the risk of thermal degradation. For example, in a vacuum crude unit, replacing trays with structured packing can lower column ΔP from over 100 mbar to below 30 mbar, enabling a significant reduction in furnace outlet temperature.

• Revamps (Capacity/Uprating): Often allows for significant throughput increases (20-50% or more) within an existing column shell due to higher capacity and efficiency.

• High-Purity Separation: Consistent, predictable HETP supports designs requiring many theoretical stages in a limited height.

• Heat-Sensitive Materials: The short liquid residence time and low hold-up are advantageous.

Selection involves balancing efficiency, capacity, and pressure drop against cost. For a high-capacity service, a packing with lower specific surface area is optimal, whereas a high-efficiency, higher-area packing is chosen for difficult separations.

Considerations for Selection and Operation
Successful implementation requires attention to:

• System Physical Properties: Foaming, fouling tendency, and solid content must be assessed. Special surface treatments or larger channel sizes may be specified for problematic services.

• Material Selection: Alloy choice is critical for corrosion resistance and product purity. Duplex stainless steels or nickel alloys are used for aggressive environments.

• Mechanical Design: Proper installation, including the levelness of packing layers and the performance of liquid distributors, is paramount to achieving design performance.

• Scale-up: Reliable performance prediction depends on using vendor-specific hydraulic and mass transfer data, often generated from pilot columns of sufficient diameter (>300 mm) to minimize wall flow effects.




Conclusion
Metal structured packing is a well-established, data-driven technology for enhancing the performance of separation columns. Its defining characteristics—ordered geometry, high efficiency, low pressure drop, and high capacity—make it a suitable choice for a wide range of modern process applications, from vacuum towers to product uprating projects. The engineering selection process necessitates a careful analysis of process requirements, hydraulic performance data, and mechanical constraints to ensure reliable and economic operation. Wangdu (Hebei) Chemical Engineering Co., LTD utilizes these established engineering principles and performance data in the design and supply of structured packing systems tailored to specific client process conditions.

References

1. Kister, H.Z. (1992). Distillation Design. McGraw-Hill. (Provides fundamental theory and comparative data on column internals).

2. Stichlmair, J., & Fair, J.R. (1998). Distillation: Principles and Practice. Wiley-VCH. (Includes chapters on packed column design and performance).

3. Spiegel, L., & Meier, W. (2003). "Correlations for the Prediction of Mass Transfer Efficiency and Pressure Drop of Structured Packings." Chemical Engineering Research and Design, 81(1), 69-81. (Presents widely-used engineering correlations).

4. Billet, R. (1995). Packed Towers in Processing and Environmental Technology. VCH Publishers. (Comprehensive resource on packing hydraulics and mass transfer).

5. Fractionation Research, Inc. (FRI) Design Practices, various reports. (Industry consortium data on packing performance).

6. Eckert, J.S. (1970). "Selecting the Proper Distillation Column Packing." Chemical Engineering Progress, 66(3), 39-44. (A classic paper outlining selection principles).
