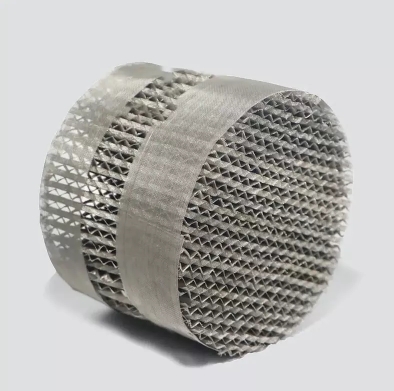

Distillation Column Structured Packing

Distillation Column Structured Packing Technology by Wangdu (Hebei) Chemical Engineering Co., LTD

Introduction

Distillation column structured packing plays a critical role in modern separation processes across industries such as petrochemicals, pharmaceuticals, and environmental engineering. At Wangdu (Hebei) Chemical Engineering Co., LTD, we focus on developing structured packing solutions that enhance separation efficiency while maintaining operational reliability. Our products are designed to meet industry standards with consistent performance in various distillation applications.

Features of Our Structured Packing

1. Optimized Geometric Design

• Corrugated sheet arrangement improves vapor-liquid contact efficiency

• Precise channel angles (typically 45° or 60°) for balanced flow distribution

• Controlled surface texture to enhance wetting characteristics

2. Material Selection

• Stainless steel (304/316L) for general chemical applications

• Carbon steel for cost-sensitive installations

• Special alloys (Hastelloy, Monel) for corrosive environments

3. Performance Characteristics

• Surface area range: 100-750 m²/m³

• Void fraction: 85-98%

• Pressure drop: 0.2-1.5 mbar/m depending on design

Technical Specifications

Applications

Our structured packing is suitable for:

• Crude oil fractionation

• Solvent recovery systems

• Natural gas processing

• Fine chemical purification

• Wastewater treatment

Design Considerations

1. Liquid Distribution

• Requires proper distributor design (we provide matching solutions)

• Minimum irrigation rate: 0.2 m³/m²h

2. Vapor Flow Management

• Maximum F-factor: 2.5-3.0 Pa⁰·⁵

• Flooding point calculation service available

3. Installation Factors

• Support grid requirements

• Bed height limitations (typically <10m per section)

Manufacturing Process

1. Material preparation: Precision cutting of metal sheets

2. Corrugation forming: Computer-controlled roller systems

3. Surface treatment: Optional electrochemical polishing

4. Assembly: Layered packing elements with alignment control

5. Quality inspection: Dimensional verification and material certification

Performance Data

Our third-party tested packing demonstrates:

• HETP (Height Equivalent to Theoretical Plate): 0.2-0.5m for common systems

• Capacity increase: 15-30% compared to random packing

• Energy savings: 8-12% reduction in reflux requirements

Selection Guide

We recommend considering:

1. Process requirements (separation difficulty, throughput)

2. Chemical compatibility (material selection)

3. Column dimensions (diameter, height constraints)

4. Operating conditions (pressure, temperature)

Maintenance Considerations

• Inspection intervals: Recommended every 2-3 years

• Cleaning methods: Chemical washing or steam treatment

• Replacement indicators: Increased pressure drop (>20% from design)

Conclusion

Wangdu (Hebei) Chemical Engineering Co., LTD provides structured packing solutions based on proven engineering principles. Our products offer measurable improvements in distillation efficiency while maintaining long-term reliability. We focus on delivering technically sound solutions with clear performance characteristics.

For specific application requirements or technical consultation, please contact our engineering team.

References

1. Kister, H.Z. (2022). Distillation Design and Operation

2. AIChE Equipment Testing Procedure (2021). Random and Structured Packings

3. ISO 2819:2020. Metallic coatings on metallic substrates

4. Wangdu Technical Report (2023). Structured Packing Performance Data
