Structure Packing Column

Structure Packing Column: An Overview by Wangdu (Hebei) Chemical Engineering Co., LTD

Introduction

Structure packing columns are widely used in chemical, petrochemical, and refining industries for separation processes such as distillation, absorption, and stripping. These columns are designed to enhance mass transfer efficiency by providing a large surface area for vapor-liquid contact while minimizing pressure drop. Wangdu (Hebei) Chemical Engineering Co., LTD specializes in the design and supply of high-quality structured packing solutions tailored to various industrial applications.

Types of Structured Packing

Structured packing is typically made from materials such as metal, plastic, or ceramic, depending on the process requirements. Common types include:

• Corrugated Sheet Packing: Features layered sheets with uniform openings to optimize fluid distribution.

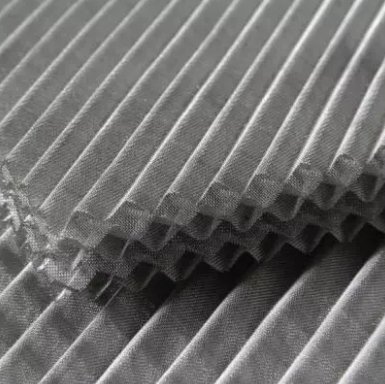

• Gauze Packing: Used in high-efficiency applications due to its fine mesh structure.

• Grid Packing: Suitable for high-capacity and fouling services due to its open structure.

Advantages of Structured Packing

Compared to random packing or tray columns, structured packing offers several benefits:

• Lower Pressure Drop: Reduces energy consumption in gas-phase processes.

• Higher Efficiency: Improves separation performance with better liquid distribution.

• Scalability: Suitable for both small and large-diameter columns.

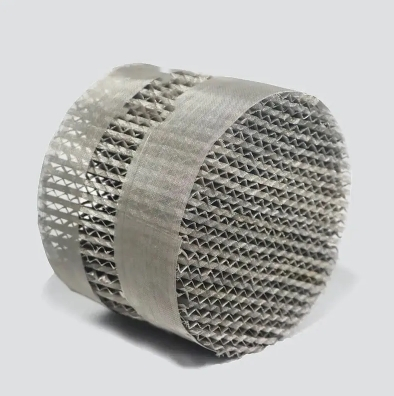

Applications

Structured packing is commonly employed in:

• Distillation Columns: For separating hydrocarbon mixtures in refineries.

• Absorption Columns: In gas treatment and acid removal processes.

• Stripping Columns: For removing volatile components from liquids.

Conclusion

Structured packing columns play a crucial role in modern separation processes, offering efficiency and reliability. Wangdu (Hebei) Chemical Engineering Co., LTD provides customized structured packing solutions to meet diverse industrial needs, ensuring optimal performance in various applications.

Reference

1. Kister, H. Z. (1992). Distillation Design. McGraw-Hill.

2. Wangdu (Hebei) Chemical Engineering Co., LTD. (2024). Technical Specifications for Structured Packing.

3. Stichlmair, J., & Fair, J. R. (1998). Distillation: Principles and Practices. Wiley-VCH.
