Introduction
In the field of chemical and process engineering, the efficiency of separation and mass transfer operations is fundamentally linked to the design and performance of column internals. Among these, structured packing represents a significant advancement over traditional random packing and trays. Metal Wire Gauze Corrugated Structured Packing, characterized by its precise geometry and high surface area, is a critical component for demanding distillation, absorption, and stripping applications. As a manufacturer in this specialized domain, Wangdu (Hebei) Chemical Engineering Co., LTD produces engineered wire gauze packing designed to meet specific process requirements. This article provides a technical examination of this packing type, detailing its construction, operational principles, performance characteristics, and application considerations.
Material Composition and Fabrication
The primary material for this packing is high-grade stainless steel wire, most commonly grades 304 (1.4301) or 316 (1.4401). Grade 316, with its molybdenum content, is specified for services involving chlorides or other corrosive components. The wire, with a typical diameter ranging from 0.10 mm to 0.25 mm, is woven into a precise, plain Dutch weave or twilled weave pattern to form a gauze with mesh counts between 40 and 100 wires per inch. This fine mesh provides a high void fraction while creating a stable structure for liquid film formation.

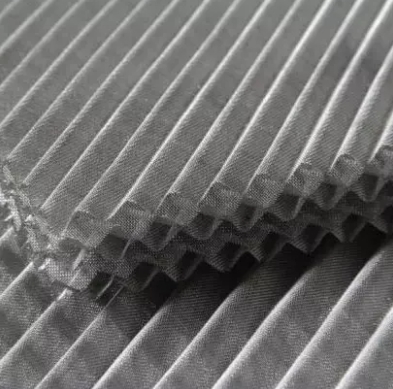

The corrugated structure is formed by pressing the wire gauze sheets into a corrugated pattern with a defined angle, typically 45° or 60°. The corrugations are then assembled in adjacent layers, with the flow channels oriented in opposite directions (counter-current). This arrangement, often referred to as a "herringbone" pattern, promotes thorough mixing and radial distribution of the vapor and liquid phases. The layers are aligned and often spot-welded or bundled together into discrete packing elements of specified heights, usually between 100 mm and 250 mm.
Mechanism and Hydrodynamic Performance
The performance of wire gauze packing is driven by its ability to create and maintain thin, uniform liquid films over a large surface area.
Liquid Distribution: Liquid enters the top of the packing element and spreads via capillary action across the wire mesh. The corrugated channels guide the liquid downward in a controlled, zigzag path, preventing channeling and promoting even distribution.
Vapor-Liquid Contact: Vapor rises through the open channels between the corrugated sheets. The counter-current orientation of adjacent sheets forces the vapor to change direction repeatedly, creating intense turbulence and shearing at the interface with the descending liquid film. This maximizes the effective interfacial area for mass transfer.
Key Hydrodynamic Parameters:
Surface Area: Ranges from 250 to 750 m²/m³, significantly higher than most random packings.
Void Fraction: Typically exceeds 90%, resulting in very low pressure drop per theoretical stage.
Theoretical Stages per Meter (NTSM): Under optimal conditions, wire gauze packing can achieve 5 to 10 theoretical stages per meter of packing height, depending on the system and operating conditions.
Pressure Drop: Characteristically low, often between 0.2 and 1.0 mbar per theoretical stage for vacuum distillation applications.
Design and Performance Characteristics
The design of the corrugations and the wire mesh directly influences performance metrics critical for column design:
Geometric Surface Area (a): A higher surface area enhances mass transfer capacity but must be balanced against increased cost and potential susceptibility to fouling.
Corrugation Angle (θ): A 45° angle offers a good balance between efficiency and capacity. A 60° angle generally provides higher efficiency (more NTSM) but at a slightly reduced hydraulic capacity.
HETP (Height Equivalent to a Theoretical Plate): This is a direct measure of separation efficiency. For wire gauze packing, HETP values are typically low and consistent, often ranging from 150 mm to 300 mm for well-designed systems with proper liquid distribution. HETP is system-dependent and must be validated for specific fluid properties.
Capacity (C-factor or Fs): The vapor capacity factor (Fs = u_v * √ρ_v, where u_v is superficial vapor velocity) at the flooding point is high due to the high void fraction. Operational Fs values are commonly in the range of 2.0 - 3.5 Pa^0.5.
Applications and Suitability
Metal wire gauze corrugated packing is the preferred choice for technically challenging separations where high efficiency and low pressure drop are paramount:
High-Purity and Difficult Separations: Isomer separations (e.g., xylene), fine chemical synthesis, and pharmaceutical intermediate production.
Vacuum Distillation: Essential in applications where thermal degradation of products must be minimized, such as in the fatty acid, essential oil, and specialty chemical industries. The low pressure drop allows for lower bottom temperatures and energy savings.
Heat-Sensitive Systems: The short liquid residence time and efficient heat transfer help reduce thermal stress on sensitive compounds.
It is less suited for services with heavy fouling, polymerization, or where suspended solids are present, as the fine mesh can become plugged.
Installation and Operational Considerations
Proper installation is critical to achieving design performance. This includes:
Liquid Distribution: A high-performance liquid distributor is non-negotiable. Maldistribution can reduce efficiency by over 50%. Distributors must be designed for the specific packing type and liquid load.
Bed Limiters and Support Grids: Appropriate support grids must have a high free area (>90%) to match the packing's low pressure drop. Bed limiters prevent fluidization and displacement of the top packing layer.
System Cleanliness: Columns must be meticulously cleaned before installation to prevent debris from blocking the mesh.
Maintenance and Service Life
With proper material selection for the chemical environment, wire gauze packing offers a long operational life. Regular inspection during shutdowns for signs of corrosion, physical damage, or fouling is recommended. Cleaning protocols, such as controlled chemical washing or ultrasonic cleaning, can be employed for certain types of fouling, though mechanical cleaning is generally not advisable due to the risk of deforming the delicate structure.
Conclusion
Metal Wire Gauze Corrugated Structured Packing represents a high-efficiency solution for demanding separation tasks. Its performance is a direct result of precise geometric fabrication from specialized materials, enabling superior mass transfer efficiency with minimal energy penalty in the form of pressure drop. For processes requiring sharp separations under vacuum or with heat-sensitive materials, it remains a technically justified selection. Wangdu (Hebei) Chemical Engineering Co., LTD focuses on the engineering and fabrication of such packings, adhering to stringent quality controls to ensure they meet the designed performance parameters for critical industrial applications.
