Metal structured packing is a highly efficient mass transfer component widely used in distillation, absorption, and stripping columns across industries such as petrochemicals, refining, gas processing, and environmental engineering. Compared to random packing and tray columns, structured packing offers superior performance in terms of efficiency, capacity, and pressure drop reduction.
Wangdu (Hebei) Chemical Engineering Co., LTD specializes in the design and manufacturing of high-quality metal structured packing. Our products are engineered to meet the demanding requirements of modern industrial processes, ensuring optimal performance and long-term reliability.

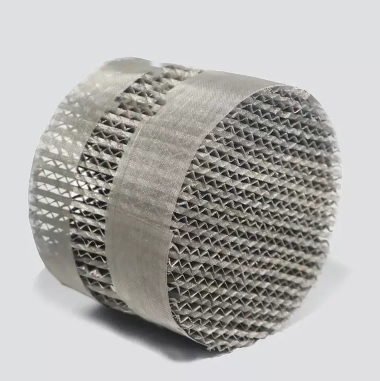

Structured packing consists of corrugated metal sheets arranged in a geometric pattern to create a large surface area for gas-liquid contact. Key design features include:
Corrugated Layers: Thin, perforated metal sheets with precise angles (typically 45° or 60°) to maximize interfacial area.
Surface Enhancements: Some designs incorporate textures, grooves, or micro-features to improve wetting and liquid distribution.
Material Selection: Available in stainless steel (304, 316, 316L), carbon steel, titanium, and specialty alloys for corrosion resistance.
Modular Construction: Packing elements are assembled in layers, allowing easy installation and customization for different column diameters.
This optimized structure ensures efficient phase contact while minimizing energy consumption.
The uniform flow distribution and large surface area enhance separation efficiency, often reducing required column height compared to trays or random packing.
Ideal for difficult separations with close boiling points.
The open structure allows high vapor/liquid throughput with minimal resistance, lowering energy costs.
Particularly beneficial in vacuum distillation and high-capacity applications.
Can handle higher flow rates than conventional trays without flooding.
Reduces column diameter requirements in new designs.
Metal construction withstands high temperatures, pressures, and corrosive environments.
Resistant to fouling and degradation compared to plastic alternatives.
Various corrugation angles and surface treatments can be selected based on process requirements.
Customizable for revamps of existing tray columns.
Standard choice for most distillation and absorption applications.
Available in different surface areas (e.g., 125Y, 250Y, 350Y) for varying efficiency needs.
Made from wire mesh for ultra-high efficiency in low-liquid-load applications.
Commonly used in cryogenic air separation and fine chemical distillation.
Some designs feature special surface treatments or hybrid structures for enhanced performance in challenging services.
Crude oil fractionation, vacuum distillation
Aromatics separation, ethylene oxide/ glycol production
Acid concentration (H2SO4, HNO3)
Solvent recovery, specialty chemical purification
CO2 and H2S removal in amine contactors
NGL (Natural Gas Liquids) recovery
Flue gas desulfurization (FGD)
VOC (Volatile Organic Compounds) abatement
High-purity distillation for active pharmaceutical ingredients (APIs)
Isomer separation
When choosing metal structured packing, key factors include:
Process Conditions (temperature, pressure, corrosivity)
Separation Difficulty (relative volatility, purity requirements)
Hydraulic Requirements (flow rates, pressure drop limitations)
Material Compatibility (chemical resistance needs)
Wangdu (Hebei) Chemical Engineering Co., LTD provides technical support to help customers select the optimal packing type and material for their specific application.
Advanced production facilities ensuring precise corrugation angles and surface treatments
Strict quality control meeting international standards (ASTM, ASME, DIN)
Full range of corrosion-resistant alloys available
Can provide special materials like duplex stainless steels for severe services
Tailored designs for column revamps or unique process requirements
Various heights and diameters to match existing equipment
Assistance with hydraulic calculations and performance predictions
Installation guidance and troubleshooting support
Proper installation is critical for optimal performance:
Requires careful leveling and proper liquid distribution systems
Inspection during shutdowns for fouling or corrosion
Generally lower maintenance than trays with no moving parts
Our team can provide detailed installation manuals and best practice recommendations.
Metal structured packing from Wangdu (Hebei) Chemical Engineering Co., LTD offers a reliable, high-performance solution for modern separation processes. Its combination of efficiency, capacity, and energy savings makes it the preferred choice for demanding applications across multiple industries.
With our manufacturing expertise and technical support, we help customers optimize their separation processes for improved productivity and cost-effectiveness. Contact our engineering team to discuss how our metal structured packing can meet your specific application needs.
