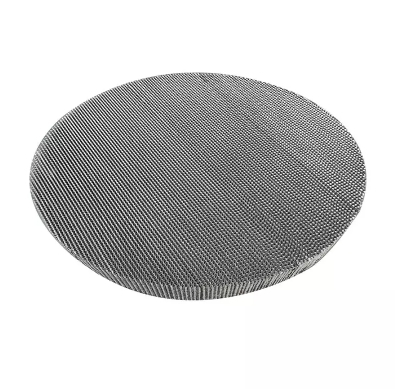

Metal structured packing is a critical component in modern separation columns, widely utilized in industries such as petroleum refining, chemical production, petrochemicals, and gas processing. Its design represents a deliberate evolution from older, random packing and tray technologies, focusing on enhanced performance metrics. Unlike randomly dumped packing, structured packing consists of thin, corrugated metal sheets arranged in a precise geometric pattern within the column. This engineered structure creates a uniform network of open channels, facilitating intimate contact between vapor and liquid phases. This article provides a technical examination of metal structured packing, covering its design principles, operational characteristics, material considerations, and application guidelines, drawing upon the engineering perspective of Wangdu (Hebei) Chemical Engineering Co., LTD.
The performance of metal structured packing is fundamentally dictated by its geometric configuration. The primary design objectives are to maximize surface area for mass transfer while minimizing resistance to fluid flow.
Corrugation Pattern: Sheets are typically corrugated at a defined angle (commonly 45° or 60°). Adjacent sheets are oriented so their corrugations cross, creating a lattice of intersecting flow paths. This promotes lateral spreading and mixing of both phases.
Surface Enhancement: The basic metal surface is often modified to improve wettability and initial liquid distribution. This includes:
Texturing (Embossing): Creating fine grooves or perforations to disrupt laminar flow films and create surface turbulence.
Micromesh: Applying a very fine wire mesh to the sheet surface to significantly increase effective surface area and capillary action.
Hydraulic Diameter and Specific Surface Area: Key parameters are inversely related. High specific surface area (e.g., 250-750 m²/m³) favors mass transfer but increases pressure drop. A larger hydraulic diameter improves capacity and reduces pressure drop. Selection involves balancing these factors based on process requirements.
The engineered geometry of structured packing delivers distinct performance profiles compared to other internal devices.
High Separation Efficiency: The uniform and repeatable channels provide consistent vapor-liquid contact, leading to a low Height Equivalent to a Theoretical Plate (HETP). Typical HETP values for standard commercial packings range from 300 to 600 mm, depending on the specific surface area and system properties. This allows for shorter column heights or more theoretical stages within a given height.
Low Pressure Drop: The open structure offers minimal resistance to vapor flow. Pressure drop per theoretical stage (ΔP/N) is typically in the range of 0.1 to 0.5 mbar. This is a significant advantage in vacuum distillation operations, where it helps maintain the low absolute pressure required for separating heat-sensitive components.
High Capacity: The low resistance to flow allows for higher vapor and liquid throughputs before flooding occurs, compared to many tray designs. This translates to increased production capacity for existing columns or more compact designs for new ones.
Material choice is crucial for corrosion resistance, strength, and cost-effectiveness. Wangdu (Hebei) Chemical Engineering Co., LTD utilizes a range of materials to suit diverse process environments.
Stainless Steels: The most common material family. Type 304 (SS304) is standard for general services without chlorides. Type 316 (SS316) offers better resistance to pitting from chlorides and organic acids.
Special Alloys: For highly corrosive environments, alloys like Hastelloy C-276, Monel 400, Inconel 600/625, and Titanium (Gr. 2) are employed. Selection is based on compatibility with specific process chemistries (e.g., presence of HCl, chlorides, sour gases).
Duplex and Super Duplex Stainless Steels: Offer high strength and excellent chloride stress corrosion cracking resistance, suitable for demanding offshore and chemical applications.
Fabrication Quality: Precision in corrugation angle, sheet alignment, and pack element assembly is critical to achieving designed performance. Industry standards such as Mixing Equipment Technology (MET) guidelines govern installation tolerances.
Effective implementation requires careful integration of the packing with overall column design.
Liquid Distribution: The performance of structured packing is exceptionally sensitive to initial liquid distribution. A high-performance, gravity-fed distributor (e.g., trough-type) with precise drip-point density (often 70-150 points per m²) is essential to ensure uniform irrigation across the entire pack bed.
Bed Support and Hold-Down: Robust support grids must carry the packed bed weight while maintaining high open area. Hold-down grids are placed atop the bed to prevent fluidization and movement during operation, especially in high-capacity or upset conditions.
Wetted Wall Reducers (Wall Wipers): These are installed at the column wall interface to deflect liquid running down the wall back into the active packing area, mitigating the wall flow effect which reduces effective efficiency.
Scale-Up and Modeling: Performance data from pilot-scale testing or validated empirical correlations (e.g., those by Billet & Schultes) are used for accurate industrial-scale column design. Computational Fluid Dynamics (CFD) is increasingly used to model complex multiphase flow within the packing geometry.
Metal structured packing is not a universal solution; its advantages are most pronounced in specific scenarios.
Versus Random Packing: Structured packing offers lower pressure drop, higher capacity, and more predictable, scalable efficiency. Random packing may be preferred for extremely fouling services or in smaller, irregularly shaped columns.
Versus Trays (Sieve/Valve): Trays generally offer greater turndown flexibility and are less sensitive to maldistribution. They can also handle solids better. Structured packing is selected when low pressure drop, high efficiency, or high capacity is the primary driver.
Typical Applications:
Vacuum and Atmospheric Distillation: Crude oil distillation, vacuum gas oil (VGO) units, fatty acid fractionation.
Gas Processing and Treating: CO2 absorption in amine contactors, glycol dehydration.
Reactive Distillation: Where combined reaction and separation occur.
Environmental and Off-Gas Scrubbing: Removal of contaminants from vent streams.
Conclusion
Metal structured packing is a sophisticated, performance-oriented internals technology that enables efficient and compact separation processes. Its value is realized through a systematic approach that pairs appropriate geometric and material selection with precision manufacturing and meticulous column design—particularly focusing on liquid distribution. For engineering firms and end-users like Wangdu (Hebei) Chemical Engineering Co., LTD, a deep understanding of its operational principles and limitations is key to successfully deploying structured packing to revamp existing columns or design new, cost-effective separation systems. Continued advancements in surface enhancements and modeling techniques promise further refinement of this well-established technology.
References
Kister, H. Z. (1992). Distillation Design. McGraw-Hill. (Chapters on Packed Column Design).
Billet, R., & Schultes, M. (1999). "Prediction of Mass Transfer Columns with Dumped and Arranged Packings: Updated Summary of the Calculation Method of Billet and Schultes." Chemical Engineering Research and Design, 77(6), 498-504.
Stichlmair, J., & Fair, J. R. (1998). Distillation: Principles and Practices. Wiley-VCH.
Fractionation Research, Inc. (FRI). (Various Technical Reports). Design and Performance Data for Tower Internals.
Mixing Equipment Technology, Inc. (MET). Standardized Testing and Performance Ratings for Structured Packing.
Wangdu (Hebei) Chemical Engineering Co., LTD. (2023). Engineering Design Specifications and Material Selection Guidelines for Tower Internals.
