Introduction
Metal random packing represents a category of mass transfer internals widely implemented in separation processes across the chemical, petrochemical, and refining industries. Composed of discrete metallic elements dumped randomly into a column, these packings create a high surface area-to-volume ratio to facilitate efficient contact between vapor and liquid phases. This article provides a detailed technical examination of metal random packings, covering their design evolution, performance characteristics, hydraulic properties, and application considerations, supported by relevant engineering data and standards.
Historical Development and Geometrical Evolution
The development of metal random packings has been driven by the continuous pursuit of enhanced mass transfer efficiency and reduced energy consumption. The progression of their geometries can be categorized into distinct generations:
First Generation - Raschig Rings:
Originally made from ceramic and later adapted to metal, these simple cylinders represented an early standard. While an improvement over earlier fractionation methods, their performance is limited by significant internal liquid holdup and a tendency to promote channeling, resulting in a relatively low surface area per unit volume (typically 60-140 m²/m³ for 25mm metal rings) and a higher pressure drop compared to modern designs.
Second Generation - Saddle-Type Packings:

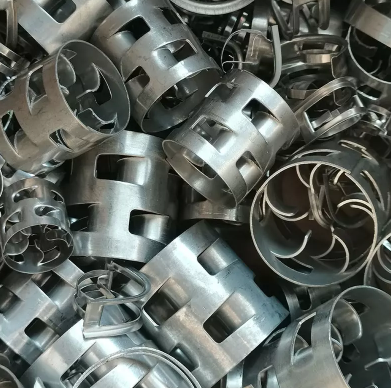

The introduction of metal saddle packings, such as the Pall ring (a Raschig ring with internal tabs and wall perforations), marked a significant advancement. The perforations increase the available surface area and promote liquid film renewal, while the internal struts enhance liquid redistribution within the bed. This design typically offers a 30-50% reduction in pressure drop and a 20-40% increase in capacity compared to Raschig rings of equivalent size.
Third Generation - High-Performance Packings:
Modern metal random packings, including designs like Nutter Rings, IMTP® (Koch-Glitsch), and CMR® (Sulzer), feature highly open, geometrically complex structures. These designs prioritize a high void fraction (often 95-98%) to maximize capacity and minimize pressure drop. They incorporate features such as multiple internal ribs, directional notches, and extended surface arms to systematically control liquid distribution and enhance interfacial area renewal. According to published data, these packings can provide 40-70% more theoretical stages under a given pressure-drop constraint compared to first-generation designs.
Material Specifications and Manufacturing
The performance and applicability of metal random packings are intrinsically linked to their material composition and fabrication methods.
Common Materials:
Carbon Steel: A cost-effective option for non-corrosive hydrocarbon services.
Stainless Steel (304/316/L): The most widely used material, offering good corrosion resistance and mechanical strength for a broad range of chemical processes.
Special Alloys (Monel, Hastelloy, Titanium): Employed in highly corrosive environments involving halides, strong acids, or caustic streams.
Manufacturing Techniques:
Packings are typically manufactured from metal sheets or wires through processes like stamping, bending, and welding. The thickness of the base material is carefully controlled to ensure mechanical integrity under load while minimizing weight. Surface treatments, such as electropolishing for stainless steel, can be applied to improve wettability, particularly in aqueous systems, and facilitate cleaning.
Hydraulic and Mass Transfer Performance
The efficacy of a metal random packing is quantified by several key performance parameters.
Capacity and Flooding Point:
The capacity is defined by the maximum vapor velocity achievable before flooding. Flooding is characterized by a rapid, nonlinear increase in pressure drop where liquid is entrained upward, collapsing separation efficiency. The capacity factor, C_s = U_s √[ρ_G / (ρ_L - ρ_G)] (where U_s is superficial vapor velocity), is a common dimensionless parameter for comparing packings. High-performance metal packings exhibit a high C_s value due to their open structure.
Pressure Drop:
Pressure drop per unit height of packing is a critical design parameter, as it directly impacts energy costs for gas compression or vacuum operation. Data from Norton Chemical Process Products (1998) indicates that a modern high-performance metal packing can operate with a pressure drop of 0.2 to 0.7 mbar per theoretical stage in a typical distillation service, which is significantly lower than that of earlier generations.
Efficiency (HETP):
Mass transfer efficiency is measured as the Height Equivalent to a Theoretical Plate (HETP). A lower HETP indicates a more efficient packing. For metal random packings, HETP values generally range from 0.4 to 1.0 meter. This value is not constant; it is dependent on the packing size, the specific chemical system, and the vapor/liquid flow rates (the "loading" region). Proper initial liquid distribution is paramount to achieving the designed HETP.
Design and Selection Criteria for Industrial Applications
Selecting the appropriate metal random packing requires a systematic analysis of process requirements.
Process Conditions:
Operating pressure, temperature, and flow rates dictate the packing size and material selection. Smaller packings (e.g., 25mm) offer higher efficiency (lower HETP) but at the cost of higher pressure drop, making them suitable for low-capacity, high-purity services. Larger packings (e.g., 50-75mm) are chosen for high-capacity services where pressure drop is a constraint.
System Properties:
Fluid properties such as foaming tendency, fouling potential, and surface tension must be considered. Open-geometry packings are preferred for fouling services, while systems with low surface tension may require specialized surface treatments to ensure proper liquid wettability.
Ancillary Equipment Integration:
The performance of a randomly packed bed is heavily dependent on the quality of the liquid distributor. A distributor must provide a sufficient number of drip points per unit area (e.g., 80-150 points/m² for large diameters) to ensure uniform irrigation. The design of the packing support plate and the use of intermediate redistributors for deep beds are also critical to successful operation.
Industrial Applications
Metal random packings are utilized in a diverse array of unit operations:
Distillation: Crude oil atmospheric and vacuum distillation, BTX separation, and solvent purification.
Gas Absorption: Amine-based CO₂ and H₂S removal from natural gas (amine scrubbers).
Stripping: Removal of volatile organic compounds (VOCs) from wastewater.
Direct Contact Heat Transfer: In cooling and quenching towers.
Maintenance and Operational Considerations
Regular inspection and maintenance are essential for long-term performance. During shutdowns, the packing bed should be inspected for signs of corrosion, fouling, or mechanical damage. Cleaning procedures, such as water washing or chemical cleaning, may be required to restore performance. The mechanical integrity of the bed, including the settlement and potential crushing of the bottom layers, should also be verified.
Conclusion
Metal random packing is a mature yet continually evolving technology that plays a vital role in modern separation processes. The progression from simple rings to advanced, high-voidage geometries has provided significant benefits in capacity, efficiency, and energy consumption. A thorough understanding of their hydraulic performance, coupled with careful selection, proper installation, and integration with high-quality column internals, is fundamental to realizing their full potential in industrial applications.
Reference
Kister, H. Z. (1992). Distillation Design. McGraw-Hill.
Strigle, R. F. (1994). Random Packings and Packed Towers: Design and Applications. Gulf Publishing Company.
Norton Chemical Process Products Corporation. (1998). Random Packing Performance Data. Bulletin RK-13.
Billet, R. (1995). Packed Towers in Processing and Environmental Technology. VCH Publishers.
Perry, R. H., & Green, D. W. (Eds.). (2019). Perry's Chemical Engineers' Handbook (9th ed.). McGraw-Hill Education.
