Metal Pall Ring Packing: A Robust Solution for Modern Packed Columns

Introduction
In the evolution of mass transfer equipment for chemical processing, distillation, and gas absorption, the development of random packings has played a crucial role. Among these, the Metal Pall Ring stands as a significant and enduring design, widely recognized for its balanced performance characteristics. First introduced as an improvement upon the earlier Raschig ring, the Pall Ring's geometric modifications deliver measurable benefits in terms of capacity, efficiency, and pressure drop.

Design Evolution and Geometric Characteristics
The Metal Pall Ring was developed as a direct enhancement of the standard Raschig Ring. While the Raschig Ring is a simple, solid cylinder, the Pall Ring incorporates key structural modifications that dramatically improve its hydrodynamic and mass transfer performance.

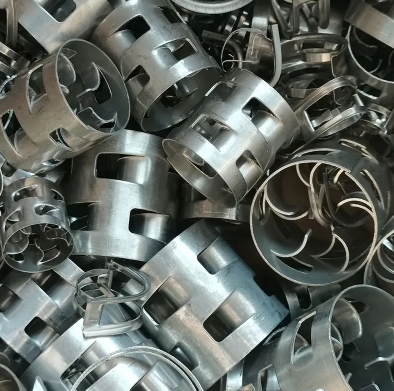

A standard Metal Pall Ring is a cylindrical element with three defining features:

1. Internal Structural Support: A continuous, vertical internal wall or "web" provides structural integrity.

2. Window Openings: Rectangular or finger-like openings are punched into the cylindrical wall and bent inward. Typically, a single ring features 12-18 such openings. These are the most critical design element, serving two primary functions: increasing the available surface area for mass transfer and facilitating the breakup and redistribution of liquid films.

3. Lipped Edges: The top and bottom edges of the ring are often flared outward, which helps to direct liquid toward the center of the packing element and promotes inter-particle contact.

These features collectively increase the void fraction, improve liquid spreading, and reduce the tendency for liquid and vapor to channel through the packed bed in a non-uniform manner. Pall Rings are manufactured from various metals, including carbon steel, 304 and 316 stainless steel, and specialized alloys like Monel or Inconel for corrosive services. Standard nominal sizes range from 15 mm (0.6 in) to 75 mm (3.0 in), with the smaller sizes generally used for higher efficiency in smaller diameter columns and larger sizes for higher capacity or to minimize fouling in larger columns.

Performance Characteristics and Comparative Data
The performance of Metal Pall Ring packing is benchmarked against other random and structured packings using standardized testing methods and industrial operating data. Its key performance attributes are:

1. High Void Fraction and Capacity: The open structure results in a high void fraction, typically ranging from 93% to 96% depending on size. This directly translates to a high capacity (C-factor at flooding). Compared to ceramic Raschig rings of equivalent size, Metal Pall Rings can handle 40-50% greater vapor and liquid flow rates before reaching the flooding point.

2. Improved Efficiency (Lower HETP): The internal windows and lip design promote better liquid spreading and renewal of the liquid-vapor interface. This results in a lower Height Equivalent to a Theoretical Plate (HETP). Under typical distillation conditions, HETP values for Metal Pall Rings range from approximately 400 to 800 mm, depending on the system, operating pressure, and packing size. For a standard 25 mm (1 inch) Pall Ring in a typical organic distillation service at moderate pressure, an HETP of 450-500 mm is commonly used for design.

3. Lower Pressure Drop: The high void fraction and improved flow geometry lead to a lower pressure drop per unit height compared to earlier generation random packings. Pressure drop correlations, such as the widely used generalized pressure drop correlation (GPDC), show that Pall Rings operate at a lower curve than Raschig Rings for the same flow parameter. Typical pressure drop for a loaded bed under normal operating rates is in the range of 0.2 to 0.6 mbar per foot of packed height.

4. Good Turndown and Maldistribution Resistance: While not as sensitive to maldistribution as high-efficiency structured packings, Pall Rings still require proper initial liquid distribution. However, their random orientation and self-redistributing characteristics provide a reasonable turndown ratio (commonly 2:1 to 3:1) and some inherent ability to correct minor upstream distribution flaws.

Industrial Applications and Selection Guidelines
Metal Pall Ring packing is a versatile choice suitable for a broad spectrum of applications. Its selection is often driven by a balance of cost, performance, and robustness.

• General Distillation and Absorption: It is extensively used in standard distillation columns for hydrocarbon separations, solvent recovery, and gas absorption towers (e.g., CO2 removal with amines, glycol dehydration).

• Column Revamps: Replacing older, less efficient packings (like Raschig Rings) or trays with Metal Pall Rings is a common and cost-effective revamp strategy. It can increase column capacity by 20-30% and improve efficiency, often without requiring modifications to the column shell or major internals.

• Services with Moderate Fouling: Its open structure makes it more resistant to fouling than smaller or more complex packings. Larger sizes (e.g., 50 mm or 75 mm) are often specified in services where particulates or polymerization may occur.

• High-Pressure and Corrosive Services: The mechanical strength of metal construction makes it suitable for high-pressure operations. Material selection (e.g., 316L SS, Alloy 20) allows for use in a wide range of corrosive chemical environments.

The choice of packing size follows general guidelines: smaller diameters (<25mm) for higher efficiency in columns with diameters >8-10 times the packing size to avoid wall effects, and larger diameters for higher capacity or fouling services.

Considerations for Optimal Performance
To achieve the design performance of Metal Pall Ring packing, careful attention must be paid to supporting column internals.

• Liquid Distribution: Although tolerant, proper initial liquid distribution remains essential. A distributor with an appropriate drip point density (e.g., 40-100 points per square meter for larger rings) is required.

• Bed Limits and Support: Random packed beds are typically limited to heights of 5-8 meters before an intermediate liquid redistributor is necessary to correct for liquid maldistribution that naturally develops down the bed. A properly designed support plate must have a high percentage of free area (>70%) to prevent flooding initiation at the base of the bed.

• Installation: Proper dry-pouring techniques are necessary to achieve a uniform, non-segregated bed with minimal packing breakage.

Conclusion
The Metal Pall Ring represents a mature, reliable, and well-understood technology in the domain of random column packing. Its design offers a demonstrable improvement in capacity, efficiency, and pressure drop over its predecessors, backed by decades of industrial operating data. For many standard and moderately demanding separation tasks, it provides an optimal balance of performance and cost. For engineering and supply companies such as Wangdu (Hebei) Chemical Engineering Co., LTD, a thorough understanding of Metal Pall Ring characteristics enables the provision of sound technical recommendations, whether for new column designs or performance upgrade projects, ensuring efficient and economical process operations for clients.

References

1. Stichlmair, J., & Fair, J. R. (1998). Distillation: Principles and Practices. Wiley-VCH. (Provides foundational theory and performance data for random packings including Pall Rings).

2. Kister, H. Z. (1992). Distillation Design. McGraw-Hill. (Contains detailed chapters on packing characteristics, performance comparisons, and selection guidelines).

3. Billet, R. (1995). Packed Towers in Processing and Environmental Technology. VCH Publishers. (Offers comprehensive data on mass transfer and hydraulic performance for various packings, including Pall Rings).

4. Norton Chemical Process Products. (2022). Intalox® Metal Tower Packings Product Information. (Vendor technical data sheet providing standard dimensions, void fractions, and surface areas for metallic Pall Ring-type packings; representative of industry specifications).

5. Eckert, J. S. (1970). "Selecting the Proper Distillation Column Packing." Chemical Engineering Progress, 66(3), 39-44. (A classic paper that established selection methodologies and highlighted the performance advantages of Pall Rings over Raschig Rings).

6. Perry, R. H., & Green, D. W. (Eds.). (2008). Perry's Chemical Engineers' Handbook (8th ed.). McGraw-Hill. (Section 14 on gas absorption and distillation includes pressure drop and capacity correlations applicable to random packings).
