Distillation Process Package China

Distillation Process Package Solutions by Wangdu (Hebei) Chemical Engineering Co., LTD

Introduction
Distillation remains one of the most critical and widely applied separation techniques in the chemical process industries (CPI). Its effectiveness in separating mixtures based on differences in volatilities makes it indispensable in sectors such as petrochemicals, fine chemicals, pharmaceuticals, and environmental management. The design and implementation of an efficient distillation process require a comprehensive approach, integrating conceptual design, detailed engineering, equipment procurement, and operational support. Wangdu (Hebei) Chemical Engineering Co., LTD specializes in delivering integrated Distillation Process Packages, providing clients with a streamlined path from initial feasibility studies to successful plant commissioning. This article outlines the key components and data-driven methodologies embedded in our distillation process packages.

Core Components of Our Distillation Process Package
A distillation process package is more than a collection of drawings; it is a complete technical solution. Our packages are structured around several interconnected components.

• Process Design & Simulation: The foundation of any successful project is robust process design. We utilize advanced process simulation software (e.g., Aspen HYSYS, Aspen Plus) to create accurate thermodynamic models of the separation process. This allows for the precise determination of key parameters such as the number of theoretical stages, reflux ratio, feed stage location, and energy requirements. For instance, in a recent project involving the separation of a binary azeotrope, simulation was used to select and optimize a pressure-swing distillation configuration, leading to a calculated 15% reduction in steam consumption compared to a conventional extractive distillation alternative.

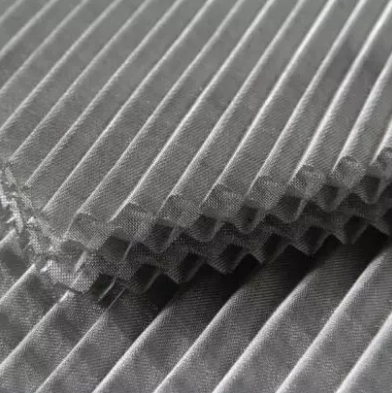

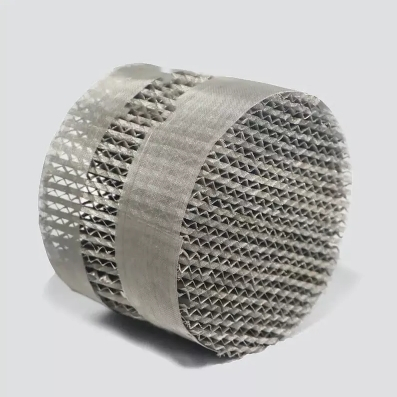

• Hydraulic Design and Tray/Column Sizing: Following the process simulation, detailed hydraulic design is conducted. This involves calculating the column diameter, weir heights, downcomer areas, and pressure drops for trayed columns. For packed columns, we perform hydraulic analysis to determine the column diameter and packing height, ensuring operation below the flood point for optimal efficiency. Our designs adhere to international standards such as API and DIN. Data from pilot plant tests or vendor data sheets for specific internals are integrated to validate the design choices.

• Heat Integration and Energy Optimization: Distillation is an energy-intensive operation. A key focus of our packages is the strategic integration of heat. We perform Pinch Analysis to identify opportunities for heat recovery. For example, the latent heat from the overhead vapor of one column can often be used to reboil another column operating at a lower temperature. In a multi-column system designed for a client, our heat integration strategy resulted in an overall energy demand reduction of approximately 20%, significantly lowering the operational carbon footprint and utility costs.

• Control Strategy and Automation: A well-designed column requires an effective control strategy for stable and safe operation. Our packages include the development of Process Control Diagrams (PCDs) and recommendations for a Distributed Control System (DCS). We design control loops for critical parameters like column pressure, level, and temperature. Advanced Process Control (APC) strategies can also be proposed to handle feed composition disturbances and further enhance energy efficiency, typically achieving an additional 2-5% energy savings.

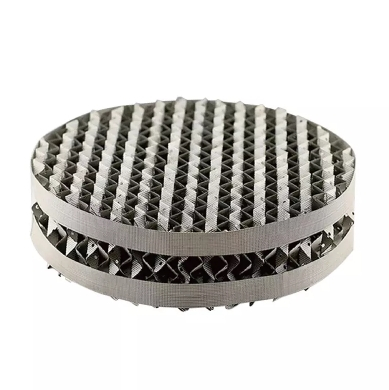

• Equipment Specification and Procurement Support: We generate detailed datasheets for all major equipment, including the distillation column shells, internals (trays or packing), reboilers, condensers, and receivers. Our long-standing relationships with certified manufacturers in China ensure that clients receive high-quality equipment that meets the design specifications, with a focus on materials of construction suitable for the process media (e.g., stainless steel 316L for chlorides service).

Applications Across Industries

The versatility of distillation allows our packages to be tailored to various industrial applications.

• Petrochemicals and Refining: Separation of crude oil fractions, purification of benzene-toluene-xylene (BTX) aromatics, and splitting of light hydrocarbons.

• Fine Chemicals and Pharmaceuticals: Purification of solvent streams, separation of reaction products, and recovery of high-purity intermediates. In these sectors, we often employ batch distillation or dividing wall column (DWC) technology to handle smaller, high-value batches efficiently.

• Environmental Management: Recovery of valuable solvents from waste streams and treatment of wastewater containing volatile organic compounds (VOCs). A project focused on isopropyl alcohol (IPA) recovery from a wastewater stream achieved a recovery rate of over 98%, turning a waste disposal cost into a resource recovery operation.

Project Execution and Commissioning

Wangdu (Hebei) Chemical Engineering Co., LTD manages the entire project lifecycle. Our execution philosophy is based on a stage-gate process, ensuring that each phase—from Basic Design and Detailed Design to Procurement, Construction, and Pre-commissioning—is completed with defined deliverables and quality checks. We provide on-site supervision during construction and commissioning, offering startup assistance and operator training to ensure a smooth transition to normal operation.

Conclusion
The distillation process package offered by Wangdu (Hebei) Chemical Engineering Co., LTD represents a consolidated engineering solution aimed at delivering efficient, reliable, and economically viable separation systems. By leveraging rigorous simulation, focused energy optimization, and a systematic project execution methodology, we provide our clients with distillation units that meet their specific production and sustainability goals. Our approach is grounded in engineering principles and operational data, ensuring predictable and successful project outcomes.

References

1. Kister, H. Z. (1992). Distillation Design. McGraw-Hill.

2. Seider, W. D., Lewin, D. R., Seader, J. D., Widagdo, S., Gani, R., & Ng, K. M. (2017). Product and Process Design Principles: Synthesis, Analysis and Evaluation (4th ed.). Wiley.

3. Linnhoff, B., Townsend, D. W., Boland, D., Hewitt, G. F., Thomas, B. E. A., Guy, A. R., & Marsland, R. H. (1982). A User Guide on Process Integration for the Efficient Use of Energy. IChemE.

4. American Petroleum Institute (API). (2017). API Standard 560: Fired Heaters for General Refinery Service (5th ed.).

5. Aspen Technology, Inc. (2021). Aspen HYSYS Simulation Basis Guides.
