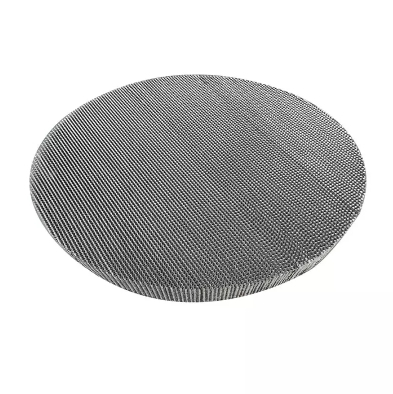

Corrugated Packing Manufacturers China

Corrugated Packing: A Technical Overview in Mass Transfer Processes

Introduction

Corrugated packing, a structured form of column internals, represents a critical development in separation and mass transfer technology for the chemical, petrochemical, and environmental engineering industries. Characterized by its geometrically arranged, corrugated sheets, it facilitates efficient contact between vapor and liquid phases within towers. Wangdu (Hebei) Chemical Engineering Co., LTD specializes in the design and manufacture of high-performance corrugated packing, focusing on the interplay between material science, precision engineering, and process optimization to meet diverse industrial requirements. This article provides a technical examination of corrugated packing, detailing its design principles, operational characteristics, material selection, and application-specific considerations.

1. Design and Geometric Fundamentals

The performance of corrugated packing is intrinsically linked to its geometric design. Each corrugated sheet is characterized by several key parameters:

• Corrugation Angle (θ): Typically ranging from 45° to 60°. A 45° angle promotes higher capacity and lower pressure drop, while a 60° angle enhances theoretical stage efficiency (HETP) due to more frequent redirection of phases, albeit with increased pressure drop.

• Crimp Height (h) and Pitch: These dimensions define the size of the flow channels. Industry-standard designs like Mellapak™ or those produced by Wangdu (Hebei) Chemical Engineering Co., LTD often feature specific geometries, such as a crimp height of 12-15 mm and a pitch of 25-40 mm, to optimize the surface area-to-volume ratio, which can exceed 250 m²/m³ for finer designs.

• Surface Texture and Perforations: Modern packings incorporate micro-texturing (embossing) and strategic perforations. Embossing enhances liquid film formation and distribution, while perforations (typically 3-6 mm in diameter) reduce pressure drop by allowing vapor to pass through the sheets, mitigating liquid hold-up and channeling.




2. Material Selection and Fabrication
The choice of material is dictated by process chemistry, operating temperature, and mechanical strength requirements.

• Metallic Packing: Most common for high-temperature and non-corrosive services.

• Carbon Steel (CS): Economical for services like crude oil distillation.

• Stainless Steels (304, 316, 316L): Standard for a wide range of services. Type 316L offers superior corrosion resistance in chloride environments. Wangdu (Hebei) Chemical Engineering Co., LTD utilizes grade 316L SS for numerous applications in acid gas treating and refining.

• Special Alloys (Monel, Inconel, Titanium): Employed in highly corrosive environments (e.g., HF alkylation, severe sour service).

• Non-Metallic Packing:

• Thermoplastics (PP, PVDF, PEEK): Polypropylene (PP) is standard for temperatures below 100-110°C in corrosive services (e.g., chlorine, brines). PVDF offers higher temperature and chemical resistance.

• Ceramics: Used in extremely high-temperature or corrosive applications where plastics are unsuitable, though they are more fragile.




3. Hydrodynamic and Mass Transfer Performance
The performance of corrugated packing is quantified through key operational parameters established via pilot-scale testing and vendor data.

• Capacity (Flood Point): The maximum vapor load before excessive liquid entrainment occurs. Structured packings generally offer 20-40% higher capacity compared to traditional random packings like Pall rings for the same pressure drop.

• Mass Transfer Efficiency (HETP/NTSM): Height Equivalent to a Theoretical Plate (HETP) or Number of Theoretical Stages per Meter (NTSM) is the primary measure. For well-distributed systems, corrugated packings can achieve HETP values between 0.3 to 0.6 meters depending on the system and operating point. For instance, data for a standard distillation test system (Cyclohexane/n-Heptane) at moderate reflux ratios shows HETP values of approximately 0.45 m for common industrial geometries.

• Liquid Distribution: This is the single most critical factor for achieving design performance. Poor initial distribution leads to maldistribution, reducing effective surface area and efficiency. Industry guidelines often specify 100-200 distribution points per square meter for high-efficiency requirements.

4. Comparative Analysis with Other Internals

• vs. Random Packing (Pall Rings, Berl Saddles): Corrugated packing offers lower pressure drop, higher capacity, and superior efficiency per unit height but at a higher capital cost. It is also more sensitive to improper installation and liquid distribution.

• vs. Trays (Sieve, Valve): Trays generally offer higher turndown ratio and are less sensitive to fouling. However, structured packings provide significantly lower pressure drop (critical in vacuum distillation), higher efficiency (leading to shorter column heights), and often greater capacity.

5. Primary Industrial Applications

• Vacuum Distillation: A major application area, especially in crude oil refining (e.g., Vacuum Gas Oil units). The low pressure drop of corrugated packing (< 5 mbar/m bed) is essential for maintaining low absolute pressure at the column bottom.

• Gas Absorption and Scrubbing: Used in amine treaters for CO₂/H₂S removal, glycol dehydration, and acid gas scrubbing due to high efficiency and capacity.

• Atmospheric and Pressure Distillation: Applied in refinery crude units, fractionation columns, and chemical process plants where separation difficulty is high.

• Reactive Distillation: The excellent mass transfer characteristics facilitate integration of reaction and separation in a single vessel.

6. Design, Installation, and Operational Considerations

• System Design: Requires precise vapor and liquid load calculations across the column height. Feed and draw locations must be integrated with packing beds and liquid redistributors.

• Installation: Must be performed with care to avoid damage. Sheets are assembled in blocks, with successive layers rotated (usually 90°) to promote radial mixing.

• Liquid Distributors: The selection (pan-type, orifice-type, trough-type) and design of distributors are as critical as the packing itself. Redistributors are typically required every 5-10 theoretical stages or 3-6 meters of packing height.

• Fouling and Maintenance: While less prone to fouling than random packing due to ordered channels, solids-laden feeds can still cause blockages. Accessibility for inspection and cleaning must be considered in the design phase.




Conclusion
Corrugated packing is a sophisticated engineered component that enables highly efficient and compact separation processes. Its performance is not inherent but results from a synergistic combination of optimized geometry, appropriate material selection, and flawless system integration, particularly regarding liquid distribution. A thorough understanding of its hydrodynamic characteristics and operational boundaries is essential for successful implementation. As a manufacturer, Wangdu (Hebei) Chemical Engineering Co., LTD contributes to this field by providing packings designed to meet specific process efficiency, capacity, and reliability targets, supported by technical data and engineering guidance.

References

1. Kister, H. Z. (1992). Distillation Design. McGraw-Hill.

2. Stichlmair, J., & Fair, J. R. (1998). Distillation: Principles and Practices. Wiley-VCH.

3. Sulzer Chemtech. (2013). Structured Packings for Distillation, Absorption, and Reactive Distillation: Product Range and Performance Data. Sulzer Ltd.

4. Wangdu (Hebei) Chemical Engineering Co., LTD. (2023). Technical Databook: Performance Characteristics of HY-PACK Series Structured Packings.

5. Billet, R. (1995). Packed Towers in Processing and Environmental Technology. VCH Publishers.

6. American Institute of Chemical Engineers (AIChE). (2019). Equipment Testing Procedure: Trayed and Packed Columns (Third Edition). AIChE.
