Metal Pall Ring packing represents a foundational component in the design of packed columns for mass transfer and separation processes across the chemical, petrochemical, and environmental engineering industries. As a widely utilized form of random packing, its evolution from the earlier Raschig ring design marked a significant improvement in column efficiency. Wangdu (Hebei) Chemical Engineering Co., LTD manufactures a range of Metal Pall Rings, utilizing specific alloys and fabrication standards to meet diverse process requirements. This article provides a comprehensive technical examination of Metal Pall Ring packing, focusing on its geometric design principles, quantifiable performance characteristics, and practical considerations for industrial application and selection.
The Pall Ring, patented in the 1950s, was developed as an enhancement to the simple cylinder of the Raschig Ring. Its design incorporates specific geometric features that directly influence hydrodynamic performance.
Key Design Features:

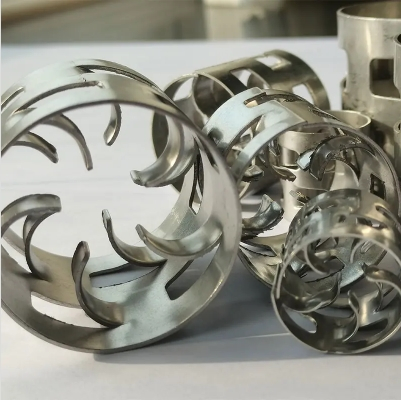

Windows and Internal Webs: A Pall Ring is a cylindrical ring with a height approximately equal to its diameter. It features several rectangular windows punched from the wall and internal tongues (or webs) bent inward. A standard metal Pall Ring typically has two large windows and two internal webs, though designs may vary.
Surface Area and Voidage: The introduction of windows and internal structures increases the geometric surface area available for mass transfer while maintaining a high void fraction. For example, a 1-inch (25 mm) stainless steel Pall Ring has a surface area of approximately ~210 m²/m³ and a voidage of about ~94%. This high voidage is a critical performance parameter.
Material and Manufacturing: Wangdu (Hebei) Chemical Engineering Co., LTD produces Pall Rings from various sheet metals, including carbon steel, stainless steel 304/316/316L, and specialty alloys like Monel® and Titanium. Rings are precisely stamped and formed, with wall thicknesses commonly ranging from 0.4 mm to 1.0 mm depending on size and material.
The performance of Pall Ring packing is characterized by its behavior under operational gas and liquid flows, measured through standardized parameters.
Pressure Drop: The open structure and high voidage result in a lower pressure drop per unit of packing height compared to older, solid designs. Pressure drop (ΔP) is a function of the gas F-factor (F_s = u_G √ρ_G, with u_G in m/s and ρ_G in kg/m³) and liquid load. For a 1-inch metal Pall Ring, the pressure drop at the loading point for an air-water system is typically in the range of 15-25 mm H₂O per meter of packing height.
Capacity and Loading/Floading Points: The increased free space allows for higher gas and liquid throughputs before flooding occurs. This expands the operational capacity of a column. The loading point, where liquid holdup begins to increase significantly, and the flooding point, where the column becomes inoperable, are clearly defined on standard performance charts.
Liquid Distribution and Holdup: The internal webs and windows promote better liquid spreading and redistribution within the packing bed compared to non-internal-finned rings. This improves wetted surface area and reduces channeling—the tendency for liquid to flow preferentially along certain paths. Effective interfacial area is often a significant fraction (e.g., 60-80%) of the geometric surface area under normal operating conditions.
Mass Transfer Efficiency: Efficiency is commonly expressed as Height Equivalent to a Theoretical Plate (HETP). For metal Pall Rings, HETP values are system-dependent but generally range from 0.4 to 0.8 meters for well-designed distillation and absorption systems under moderate loads. The Number of Transfer Units per meter (NTU/m) is an alternative measure used in absorption/stripping design.
Understanding the position of Pall Rings within the spectrum of available packings is key to proper selection.
Versus Raschig Rings: Pall Rings provide ~30-40% lower pressure drop and ~20-30% higher capacity for the same nominal size and material, due to their improved internal geometry and higher voidage.

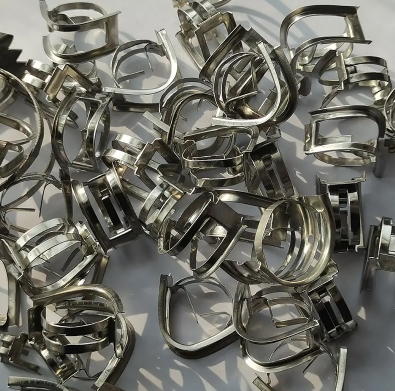

Versus More Modern Random Packings (e.g., IMTP®, Nutter Ring®): While newer "high-performance" random packings often provide lower HETP and pressure drop, standard Pall Rings remain competitive in many applications due to their proven track record, lower cost, and extensive operational data. They represent a reliable, well-understood technology.
Versus Structured Packing: Structured packing offers even lower pressure drop and higher efficiency but at a significantly higher cost and with greater sensitivity to fouling and maldistribution. Pall Rings are often preferred for services where fouling is a concern or where capital expenditure is a primary constraint.
Metal Pall Rings are employed in a vast array of separation processes due to their robust performance profile.
Distillation and Fractionation: Used in both atmospheric and vacuum towers for separating a wide range of mixtures, from petroleum fractions to organic chemicals and solvents.
Gas Absorption and Scrubbing: Common in scrubbers for removing acidic components (CO₂, H₂S, SOₓ) from gas streams using amines, caustic, or water.
Stripping and Desorption: Effective for removing volatile organic compounds (VOCs) or dissolved gases from liquid process streams or wastewater.
Direct-Contact Heat Transfer: Used in cooling and quenching towers where simultaneous heat and mass transfer occur.
Services with Fouling Potential: Their open structure and large free passages make them less prone to plugging compared to some high-efficiency packings, suitable for handling streams with minor particulate content or potential for polymerization.
Proper implementation requires careful consideration of several technical factors.
Sizing and Material Selection:
Size: Nominal sizes range from 0.5 inches (16 mm) to 3.5 inches (90 mm). A general guideline is to select a ring size less than 1/8th of the column diameter to minimize wall flow effects.
Material: Selection is based on corrosion resistance requirements. Wangdu (Hebei) Chemical Engineering Co., LTD provides options from carbon steel for benign services to high-grade alloys for corrosive environments.
Bed Design and Support:
Bed height is often limited to 5-6 meters before requiring an intermediate liquid redistributor to combat natural maldistribution.
Proper support plates (gas-injection type preferred) and hold-down plates are essential to maintain bed integrity and prevent packing movement or fluidization.
Performance Prediction: Detailed design relies on vendor-supplied performance curves or generalized correlations (like the Eckert’s Generalized Pressure Drop Correlation - GPDC) that plot pressure drop and capacity against the gas and liquid flow parameters.
Supplier Qualification: Key considerations include material certification (e.g., ASTM standards, Mill Test Certificates), dimensional consistency, and the supplier's ability to provide engineering support for installation and startup, such as that offered by Wangdu (Hebei) Chemical Engineering Co., LTD.
Metal Pall Ring packing remains a cornerstone of industrial mass transfer operations, offering a balanced combination of capacity, efficiency, pressure drop, and fouling resistance. Its performance is underpinned by a well-documented geometric design that promotes favorable hydrodynamics. Successful column design hinges on the accurate specification of packing size and material—aligned with process conditions—and the integration of proper column internals. By leveraging the reliable engineering data and material options provided by manufacturers like Wangdu (Hebei) Chemical Engineering Co., LTD, process engineers can effectively specify Pall Rings for a wide range of applications, ensuring robust and economical column performance.
