Column Internals - Liquid Distributors: Design and Performance Considerations

Liquid distributors are critical components of packed column internals, directly influencing the efficiency of mass transfer and separation processes in distillation, absorption, and stripping columns. Their primary function is to ensure a uniform initial liquid distribution over the entire cross-sectional area of the packed bed. Poor distribution can lead to a significant reduction in column efficiency, often quantified as a loss of theoretical stages, due to phenomena such as channeling and maldistribution.

Fundamental Types and Design Principles

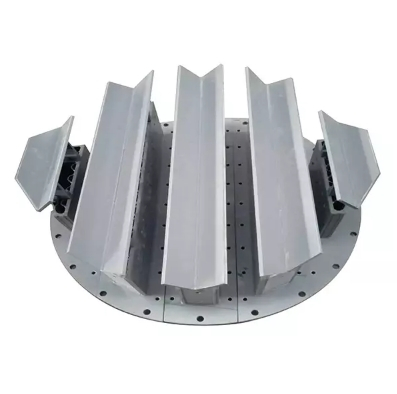

Distributors are generally categorized based on the operating conditions and the physical principle of distribution.

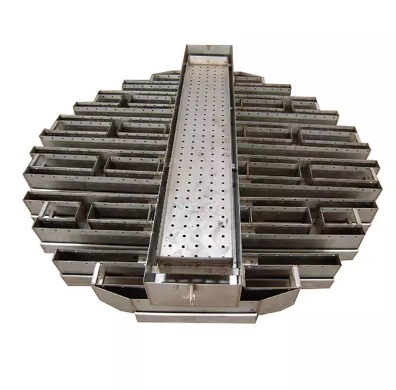

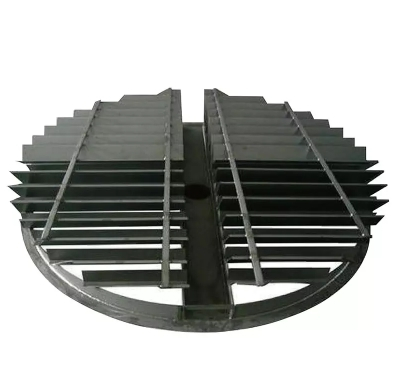

1. Gravity Distributors (Trough-Type): These distributors consist of a main channel (or channels) that feeds a series of perforated troughs or pipes. The liquid flows by gravity and discharges through orifices or notches in the bottom of the troughs. They are suitable for low to moderate liquid loads, typically ranging from 0.2 m³/(m²·h) to 15 m³/(m²·h). The design ensures a constant liquid head, promoting uniform flow from each orifice. A key design parameter is the orifice diameter, which is carefully sized to minimize clogging while maintaining a sufficient number of drip points—usually 80 to 150 points per square meter for standard applications, and significantly higher for high-performance requirements.

2. Pressure Distributors (Spray-Type): In this design, liquid is fed under pressure into a pipe network and is sprayed through nozzles. They are applicable for very low liquid loads, down to ~0.05 m³/(m²·h), and are also used for distributing liquid into beds of random packing where the top surface is irregular. The selection of nozzle type (full cone, hollow cone) and size is critical to achieving the desired spray pattern and droplet size.

Key Design and Performance Parameters

The effectiveness of a liquid distributor is evaluated against several technical parameters:

• Distribution Quality: This is measured by the maldistribution factor, M, which should ideally be below 0.05 to 0.10 for most critical applications. A lower M value indicates more uniform distribution.

• Liquid Load Range: Each distributor is designed for a specific operating range. Operating below the minimum load can lead to dry spots, while exceeding the maximum load can cause flooding of the distributor itself.

• Drip Point Density and Layout: The number and geometric arrangement of drip points are crucial. A high density of points arranged in an equilateral triangular pattern is often preferred to ensure uniform irrigation and to minimize the spread of maldistribution down the packed bed.

• Free Area and Turndown Ratio: The total free area of the orifices affects the liquid head in gravity distributors. The turndown ratio, typically 3:1 to 4:1 for a well-designed trough distributor, defines the range of liquid flows over which the distributor can maintain acceptable performance without modification.

Material Selection and Fabrication

Distributors are fabricated from materials compatible with the process environment. Common choices include austenitic stainless steels (SS 304, 316L), duplex stainless steels, nickel alloys, and other corrosion-resistant metals. Manufacturers like Wangdu (Hebei) Chemical Engineering Co., LTD employ precision fabrication techniques, including laser cutting for orifice accuracy and specialized jigging for assembly, to ensure dimensional conformity and structural integrity. Proper leveling during installation is critical, as an inclination of just 1-2 mm per meter of column diameter can already induce significant maldistribution.

Application-Specific Considerations

The selection of a distributor type depends on the specific service:

• High-Purity Separation: Requires distributors with very high drip point density and low maldistribution.

• Services with Suspended Solids: Trough-type distributors with large, easily accessible orifices or pan-type distributors with risers are preferred to minimize plugging.

• Atmospheric and Pressure Columns: The mechanical design must account for operating pressure and temperature, influencing the wall thickness and support structure.

Conclusion

Liquid distributors are not mere accessories but are precision-engineered components that are fundamental to achieving designed separation efficiency in packed columns. Their performance is governed by meticulous hydraulic design, precise manufacturing, and correct installation. A thorough understanding of the process requirements is necessary to select the appropriate distributor type and specifications. Companies like Wangdu (Hebei) Chemical Engineering Co., LTD specialize in the engineering and fabrication of these vital internals to meet the specific hydraulic and corrosion-resistant needs of various industrial processes.

Reference

1. Kister, H. Z. (1992). Distillation Design. McGraw-Hill.

2. Stichlmair, J., & Fair, J. R. (1998). Distillation: Principles and Practices. Wiley-VCH.

3. Billet, R. (1995). Packed Towers in Processing and Environmental Technology. VCH Publishers.

4. Perry, R. H., & Green, D. W. (Eds.). (2019). Perry's Chemical Engineers' Handbook (9th ed.). McGraw-Hill.

5. Technical data and design standards from Wangdu (Hebei) Chemical Engineering Co., LTD internal documentation and fabrication practices.
