Gauze Packing Manufacturers in China: A Technical Perspective on Market Dynamics and Production Standards

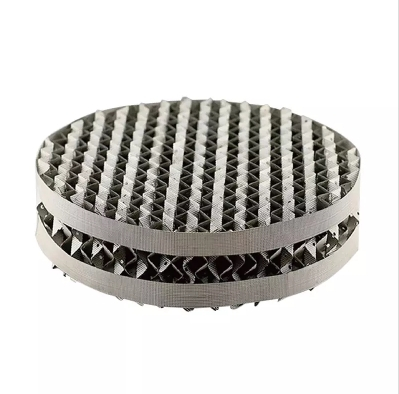

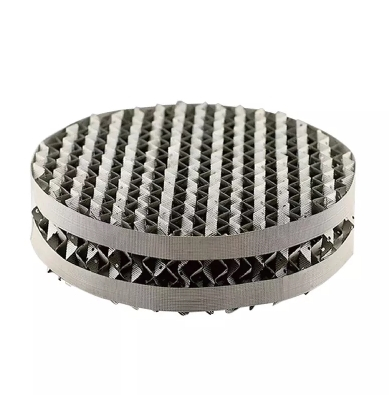

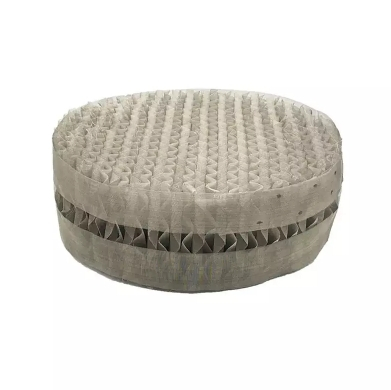

Gauze packing, also known as wire mesh packing, is a structured form of tower packing used in distillation, absorption, and stripping columns. Its characteristic construction from corrugated and plain layers of metal wire gauze creates a high-surface-area, low-pressure-drop medium for vapor-liquid contact. China has emerged as a significant global manufacturing base for this specialized chemical engineering component. This article provides a technical and market-focused overview of gauze packing manufacturing in China, examining the production ecosystem, material considerations, quality parameters, and factors influencing procurement decisions, with insights from Wangdu (Hebei) Chemical Engineering Co., LTD.

1. Overview of the Chinese Manufacturing Landscape

The production of gauze packing in China is characterized by a spectrum of manufacturers, ranging from specialized, technology-intensive firms to broader chemical equipment suppliers. This diversity caters to varied global demand.

• Industrial Clusters: Manufacturing is often concentrated in regions with strong chemical and heavy industry bases, such as Hebei, Jiangsu, Shandong, and Liaoning provinces. These clusters benefit from established supply chains for raw materials (specialty wire), machinery (corrugation, weaving), and access to technical expertise.

• Types of Manufacturers:

• Specialized Internals Producers: Companies focusing specifically on tower internals, including structured packing, trays, and distributors. These firms often invest heavily in R&D for geometry optimization and proprietary surface treatments.

• Integrated Chemical Equipment Fabricators: Larger entities that manufacture entire process columns and vessels, offering gauze packing as part of a broader portfolio. This allows for integrated system design.

• Export-Oriented Workshops: Smaller-scale operations that may produce to specification but may have limited in-house engineering design capability.

• Market Position: Chinese manufacturers compete globally primarily on a cost-performance ratio, offering products that meet international standards (e.g., ASTM, DIN, ISO) at competitive price points. The focus has progressively shifted from cost alone to include technological capability, material certification, and after-sales support.

2. Core Materials and Fabrication Processes

The performance and longevity of gauze packing are intrinsically linked to material quality and manufacturing precision.

• Wire Mesh Specifications:

• Material: Stainless steel 304 (SS304) and 316 (SS316) are the most common, with SS316L preferred for chloride-containing services. Copper, Monel, and Inconel alloys are produced for specific corrosive applications.

• Mesh Count and Wire Diameter: Standard meshes range from 40 to 80 mesh per linear inch. A typical specification is 60-mesh (60x60 wires per inch) with a wire diameter of 0.011mm. This balance provides high surface area (~500 m²/m³) while maintaining structural integrity.

• Weave Type: Plain Dutch weave or Twilled Dutch weave are standard, chosen for stability and the creation of fine, uniform capillaries for liquid film formation.

• Fabrication Stages:

1. Weaving: High-precision looms produce the wire gauze cloth. Consistency in tension and weave density is critical.

2. Corrugation: The gauze sheets are corrugated using precision-formed rollers to create the characteristic peaks and troughs. The corrugation angle (typically 45° or 60°) and height are tightly controlled.

3. Assembly and Layering: Corrugated sheets are layered with flat (plain) sheets, with corrugations of adjacent layers oriented in opposite directions. This forms the structured block with intersecting flow channels.

4. Cutting and Packing: The assembled block is cut to the required column diameter, often in segments for installation. Edges may be treated to prevent unraveling.

3. Key Quality Control and Performance Parameters

Reputable manufacturers adhere to stringent quality protocols to ensure performance data is reliable and reproducible.

• Physical and Dimensional Checks:

• Surface Area: Verified against theoretical calculations, often within a ±5% tolerance.

• Void Fraction: Typically >90%, ensuring low pressure drop. Measured via geometric calculation or displacement methods.

• Corrugation Geometry: Consistency in angle, pitch, and height is measured using optical comparators or CMM (Coordinate Measuring Machines).

• Material Certification: Mill test certificates (MTCs) for the raw wire, verifying composition per standards like ASTM A480/A480M, are a fundamental requirement. Traceability from coil to finished pack is a mark of a quality-focused manufacturer.

• Performance Validation: While full-scale hydraulic testing is often client-specific, manufacturers rely on:

• Published Data: Correlations for HETP (Height Equivalent to a Theoretical Plate) and pressure drop (ΔP) per meter, based on industry-standard test systems (e.g., under total reflux conditions with known chemical pairs like cyclohexane/n-heptane).

• Pilot-Scale Testing: Some advanced manufacturers, including Wangdu (Hebei) Chemical Engineering Co., LTD, operate pilot columns to generate client-specific performance data for non-standard systems.

4. Considerations for Sourcing and Procurement

Selecting a manufacturer involves technical and commercial evaluation beyond initial unit cost.

• Technical Collaboration Capability: The supplier’s ability to provide engineering support—such as reviewing process conditions, recommending materials, and designing associated internals (liquid distributors, support grids)—is crucial for project success.

• Compliance with International Standards: Manufacturers should demonstrate adherence to relevant quality management systems (e.g., ISO 9001:2015) and capability to produce according to international design codes (ASME, PED).

• Logistics and Packaging: Proper packaging (usually wooden crates with desiccant) is essential to prevent corrosion and physical damage during ocean freight. Reliable manufacturers have established export procedures.

• Total Cost of Ownership (TCO): This includes not just the purchase price, but also the cost of potential inefficiency (higher HETP), unplanned shutdowns due to premature failure, and the value of engineering support. A technically validated product from a reputable source often provides a lower TCO.

Conclusion

The Chinese market for gauze packing manufacturing is mature and segmented, offering a range of options for global chemical processors. The key to successful procurement lies in identifying manufacturers who combine robust, standardized production processes with genuine technical expertise and material traceability. For engineering firms and end-users like Wangdu (Hebei) Chemical Engineering Co., LTD, partnering with such manufacturers ensures that the critical performance characteristics of gauze packing—high efficiency, low pressure drop, and reliable operation—are consistently achieved. The ongoing trend in the industry is toward greater specialization, increased automation in fabrication, and a stronger emphasis on data-driven performance validation.

References

1. Kister, H. Z. (1992). Distillation Design. McGraw-Hill. (Includes sections on wire mesh packing performance).

2. Billet, R. (1995). Packed Tower Analysis and Design. Ruhr University Bochum.

3. American Society for Testing and Materials (ASTM). *ASTM A480/A480M - Standard Specification for General Requirements for Flat-Rolled Stainless and Heat-Resisting Steel Plate, Sheet, and Strip*.

4. International Organization for Standardization (ISO). *ISO 9001:2015 - Quality management systems — Requirements*.

5. Fractionation Research, Inc. (FRI). Design Guidelines for Structured Packing Installation and Performance.

6. Wangdu (Hebei) Chemical Engineering Co., LTD. (2023). Technical Datasheet & Material Selection Guide for Gauze/Wire Mesh Structured Packing.
