Introduction
Column packing is a critical component in chemical, petrochemical, and environmental engineering, enhancing mass transfer in distillation, absorption, and stripping column. At Wangdu (Hebei) Chemical Engineering Co., LTD, we specialize in the design and production of high-performance column packing to optimize industrial processes. With our own professional design and production teams, supported by experienced engineers and researchers, we deliver reliable solutions tailored to customer needs.
1. What Is Column Packing?
Column packing consists of structured or random materials placed inside process column to increase the contact surface area between gas and liquid phases. This improves separation efficiency, reduces energy consumption, and enhances overall process performance.
Column Packing Functions
Enhances mass transfer between gas and liquid phases.
Improves separation efficiency in distillation and absorption.
Reduces pressure drop compared to traditional tray columns.
Increases capacity for higher throughput in industrial applications.
2. Column Packing Types
A. Random (Dumped) Packing
Random packing consists of small, individual units that are poured into the column. Common types include:
Pall Rings – Perforated metal, plastic, or ceramic rings with high void space for efficient flow.
Raschig Rings – Simple cylindrical rings, cost-effective but with lower efficiency.

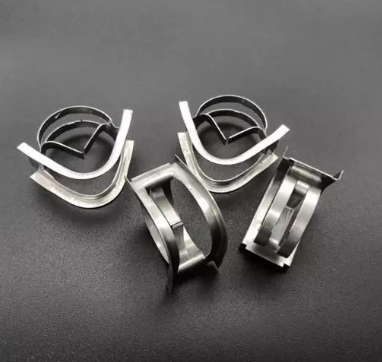

Saddle Packing (Intalox, Berl Saddles) – Designed to prevent nesting and improve liquid distribution.
Super Rings & Hybrid Designs – Engineered for higher efficiency and lower pressure drop.
Materials:
Metal (Stainless Steel, Carbon Steel, Titanium) – Durable and heat-resistant.
Plastic (PP, PVC, PVDF, PTFE) – Corrosion-resistant and lightweight.
Ceramic (Alumina, Silicon Carbide) – Suitable for extreme temperatures and corrosive environments.
B. Structured Packing
Structured packing consists of ordered layers (often corrugated or mesh-based) for precise gas-liquid contact.
Corrugated Sheet Packing (Mellapak, Sulzer BX) – Optimized for high-efficiency distillation.
Wire Mesh Packing – Used in high-purity applications (e.g., pharmaceuticals).
Grid Packing – Low pressure drop, ideal for high-capacity scrubbers.
Advantages:
Higher efficiency than random packing.
Lower energy consumption due to reduced pressure drop.
Better liquid distribution for uniform performance.
3. Applications of Column Packing
Column packing is widely used in industries such as:
Petrochemical & Refining – Distillation of crude oil, gas sweetening.
Chemical Processing – Acid absorption, solvent recovery.
Environmental Engineering – VOC removal, wastewater treatment.
Pharmaceuticals & Food Processing – High-purity separations.
4. Why Choose Wangdu (Hebei) Chemical Engineering Co., LTD?
As a manufacturer with in-house design and production capabilities, we offer:
Customized Solutions – Tailored packing designs for specific process requirements.
Strict Quality Control – Ensuring durability and performance.
Technical Support – Our team of doctors, masters, and engineers provides expert guidance.
R&D Innovation – Continuous development of advanced packing materials.
Our 2,000-square-meter R&D center enables us to test and optimize packing solutions for maximum efficiency.
5. Selection Guide for Column Packing
When choosing column packing, consider:
Process Conditions (Temperature, pressure, corrosiveness).
Efficiency Requirements (HETP – Height Equivalent to a Theoretical Plate).
Material Compatibility (Metal, plastic, or ceramic based on chemical exposure).
Cost vs. Performance Balance (Random packing for budget solutions, structured for high efficiency).
Column packing is a fundamental component in separation processes, directly impacting efficiency and operational costs. At Wangdu (Hebei) Chemical Engineering Co., LTD, we combine technical expertise and manufacturing precision to deliver high-quality column packing solutions.
