A Technical Analysis of Column Internals: Liquid Distributors for Packed Towers

Introduction
In the performance of packed columns for mass transfer operations, the role of liquid distributors is foundational. These column internals are responsible for the initial and, in the case of redistribution, intermediate uniform spreading of liquid across the top of the packing bed. Their design and execution directly influence the efficiency, capacity, and operational stability of the entire separation process. Wangdu (Hebei) Chemical Engineering Co., LTD designs and manufactures a range of distributor types to meet specific process requirements. This article provides a technical examination of liquid distributors, focusing on their design principles, classification, performance criteria, and criticality in system design.

1. Functional Role and Performance Impact
The primary function of a liquid distributor is to establish a uniform initial liquid flow pattern. The consequences of poor distribution are well-documented and quantitatively significant.

• Maldistribution Effects: Non-uniform liquid flow leads to areas of the packing bed being poorly irrigated ("dry zones") and others being flooded ("preferential channels"). This reduces the effective interfacial area for mass transfer, lowering column efficiency. Studies indicate that severe maldistribution can reduce Height Equivalent to a Theoretical Plate (HETP) performance by 20% to 50% or more compared to ideal conditions.

• Capacity Limitation: Poor distribution is a primary cause of premature flooding, as localized high liquid loads can block vapor passages. A well-designed distributor ensures the packing's intrinsic capacity, as determined by laboratory testing, is realized in the commercial column.

• Performance Guarantee: For process licensors and engineering contractors, the distributor design is often a critical element of a performance guarantee, as it is a key variable under the control of the internals supplier.

2. Classifications and Design Types
Distributors are categorized by their method of achieving distribution and their suitability for different operational parameters.

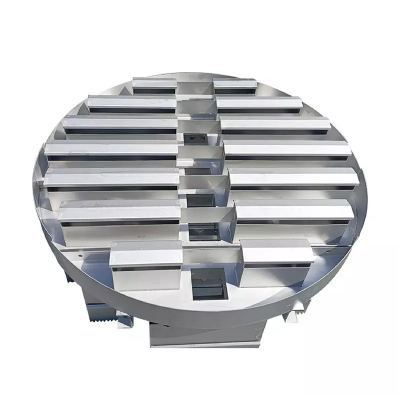

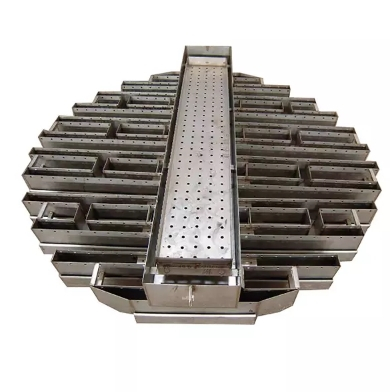

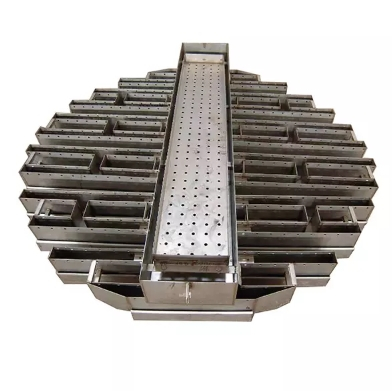

• Gravity Distributors (Trough-Type): Liquid flows by gravity into a series of distributor troughs, which contain precisely sized and located drip holes or notches. These are suitable for low to moderate liquid loads (e.g., 0.2 to 60 m³/m²h). Design variants include:

• Orifice-Type: Utilize drilled holes for liquid discharge. Hole sizing is critical to maintain a sufficient liquid head to overcome surface tension and ensure flow from all holes, typically requiring a minimum head of 50-100 mm.

• Notched Trough: Use V-notches at the top edge of troughs, which are less prone to plugging with solids but require more precise leveling.

• Pressure Distribitors (Spray-Type): Liquid is distributed under pressure through an array of spray nozzles. These are used for very low liquid rates (below ~2 m³/m²h) or in services where the distributor must also act as a wash tray to prevent fouling. Nozzle selection is based on flow rate, spray pattern (full cone, hollow cone), and droplet size.

• Pipe Distributors: A network of pipes with drilled holes or spray nozzles, often used in large-diameter columns (>3-4 meters) or where space constraints limit the use of troughs. They require careful hydraulic calculation to ensure equal flow from each outlet.

3. Key Design Parameters and Engineering Considerations
The engineering of a distributor involves balancing multiple, often competing, parameters.

• Distribution Quality (Drip Point Density): Measured in drip points per unit area (e.g., points/m²). A higher density generally improves distribution uniformity. For high-efficiency structured packing, a typical target is 100-200 drip points per square meter of column cross-sectional area. The pattern (triangular or square) is also optimized for packing geometry.

• Liquid Load Range (Turndown Ratio): The ratio of maximum to minimum design liquid flow rate over which the distributor maintains acceptable uniformity (e.g., a 4:1 turndown). This is achieved through design features like dual rows of holes in troughs or adjustable weirs.

• Levelness and Installation: Gravity distributors are highly sensitive to installation. A deviation from levelness can lead to significant flow imbalance. Industry practice often specifies levelness tolerances within ±1.6 mm across the distributor plane. Proper support from the column wall is essential.

• Geometric Constraints: The distributor must fit through the column manway for installation, which can necessitate a segmented design. Vapor passage area, typically 15-30% of the column area for gravity types, must be sufficient to handle the vapor flow with minimal pressure drop.

4. Material Selection and Fabrication Standards
Material choice is governed by process fluid corrosivity, temperature, and fouling potential.

• Metals: Carbon steel, 304/316/L stainless steel, and duplex steels are common. Fabrication involves precision cutting, welding, and drilling. Hole diameters are typically maintained within a tolerance of ±0.1 mm to ensure flow consistency.

• Polymers & Composites: Polypropylene (PP), PVDF, and fiber-reinforced plastics (FRP) are used for highly corrosive services at lower temperatures. Molding and machining techniques must ensure dimensional stability under load.

• Quality Assurance: Fabrication follows standards such as ASME B31.3 for process piping and internal guidelines for weld integrity and dimensional verification. Machined surfaces and critical hole patterns are inspected using templates or coordinate measuring techniques.

5. Application-Specific Design and Redistribution
Distributor design is not generic; it is tailored to the service.

• High-Pressure/Tight Tolerance Services: In high-pressure distillation (e.g., crude oil), small HETP values are pursued. This demands exceptionally high distribution quality, often requiring more sophisticated trough designs with higher drip point density.

• Fouling Services: For fluids containing suspended solids or polymerization potential, distributors are designed with large free areas, easy-clean features (e.g., removable trough covers), and minimal dead zones. Orifice plates may be designed to be removable.

• Redistributors: In deep packed beds (typically >6-10 meters of packing) or between different packing types, liquid redistributors are installed. These combine the functions of collecting liquid from the bed above, mixing it to mitigate any developed maldistribution, and redistributing it uniformly to the bed below. They often incorporate a chimney tray for vapor passage and a integrated distributing system.

Conclusion
Liquid distributors are precision-engineered components whose design and manufacturing quality have a direct, measurable impact on the performance of a packed column. Their selection is a critical engineering decision based on specific process data—liquid and vapor loads, turndown requirements, fluid properties, and column geometry. Manufacturers like Wangdu (Hebei) Chemical Engineering Co., LTD contribute to process efficiency by applying proven design principles, rigorous fabrication standards, and a clear understanding of the hydraulic requirements necessary to achieve the intended mass transfer performance of the packing system.

Reference

1. Kister, H. Z. (1992). Distillation Design. McGraw-Hill. (Chapters on liquid distribution and its impact on packing performance).

2. Spiegel, L., & Meier, W. (2003). "A Standardized Test System for the Characterization of Liquid Distributors." Chemical Engineering Research and Design, 81(1), 49-55. (Discusses quantitative methods for evaluating distributor quality).

3. American Society of Mechanical Engineers. *ASME B31.3 - Process Piping*.

4. Wangdu (Hebei) Chemical Engineering Co., LTD. (2024). Design Manual for Packed Column Internals: Liquid Distributors and Redistributors.

5. Fractionation Research Inc. (FRI). Guidelines for the Design and Evaluation of Liquid Distributors (Proprietary Design Practices).
